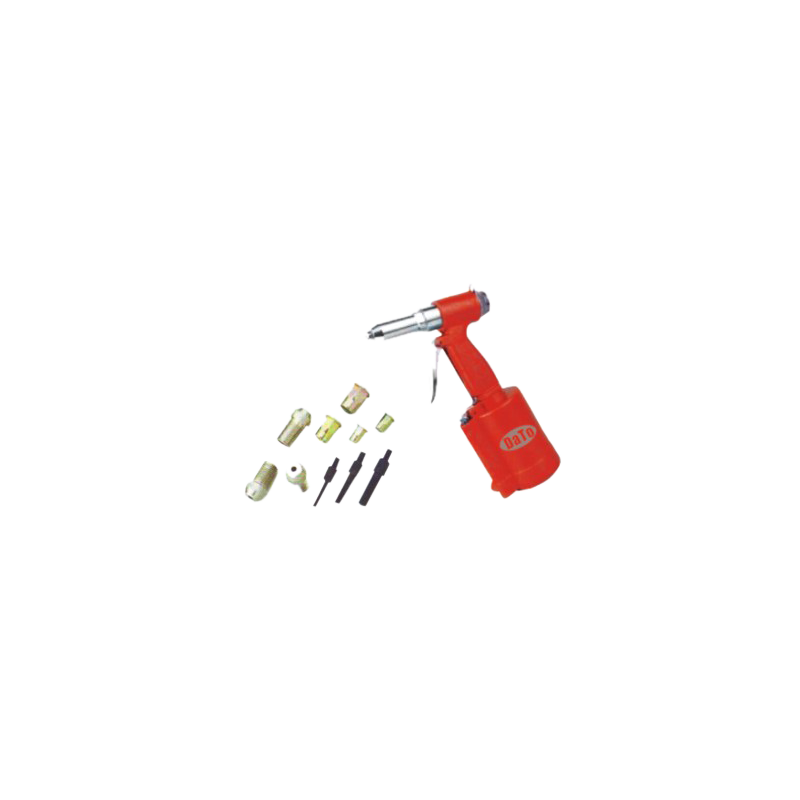

HEAVY DUTY AIR-HYDRAULIC RIVETER 1/4”
Description
DATO hydraulic piston for increase power. Ultra high speed ideal for assembly line. Sets rivets up to 1/4” (6.35mm) steel and 4.8mm stainless steel in diameter up to 2,320 lbs. (1050kgs) of pull for tough jobs. Easy operation in any position with one hand. Front exhaust.
Specifications
|
ITEM |
PTHR1001 |
|
Blind Revit Setting Capacity |
2.4,3.2,4.0,4.8,6.0,6.4mm |
|
Traction Power |
1,870lbs/850kgs |
|
Stroke Length |
9/16”/14mm |
|
Packing |
10pcs/CTN |
|
G.W/N.W |
23/22kgs |
|
Measure |
59.5×35.32 |
|
Carton Meas (cm) |
50x35x29 10pcs |
|
Ait Intel(PT) |
1/4” |
|
Air Hose(ID) |
3/8” |
|
Air Pressure |
6-7kg/cm³ |
|
Avg. Air Consumption |
0.03cfm/0.86l/min |
|
Working Pressure |
90psi 6.3kg(bar) |
|
Weight Kgs/Lbs |
1.66/3.65 |
