DLW3001 – 3D WHEEL ALIGNMENT – ROOF MOUNTABLE
Description

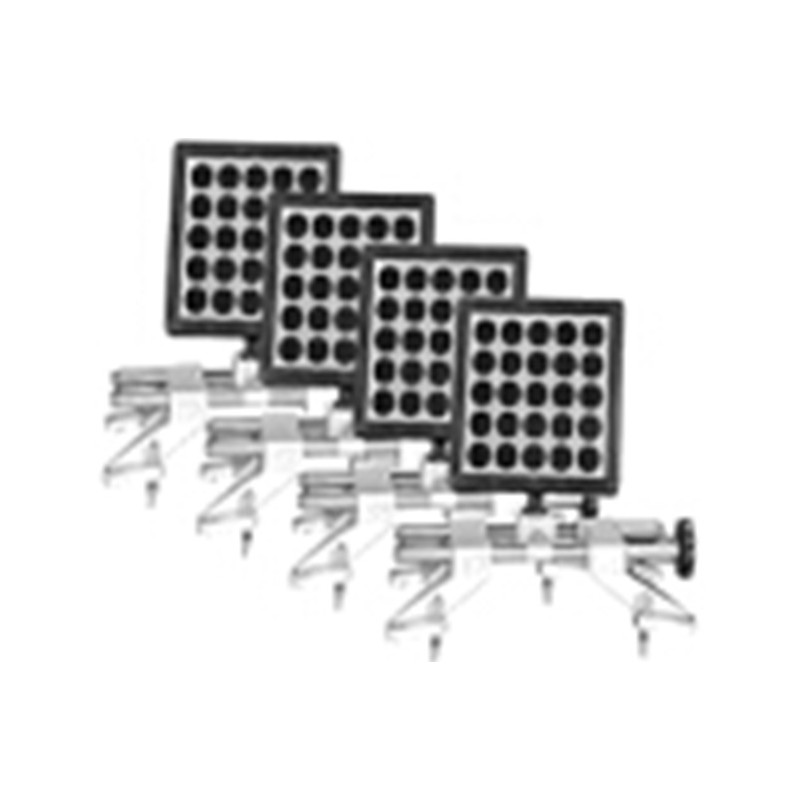

DLW3001 is the most unique and precise wheel aligner series derived from the utmost R&D and expertise from DaTo. The machine incorporates Auto Track system and comes with high precision Cameras.
The Camera column is designed to be possible to be fixed on ground as standing design or also possible to be fixed on the ROOF with the roof mounting device.
SPECIFICATIONS:
|
PARAMETER |
RANGE |
PRECISION |
||
|
Total toe |
±20° |
±0.02° |
||
|
Individual Toe |
±20° |
±0.01° |
||
|
Camber |
±12° |
±0.02° |
||
|
Caster |
±25° |
±0.1° |
||
|
KPI |
±25° |
±0.01° |
||
|
Setback |
±9° |
±0.01° |
||
|
Thrust Angle |
±9° |
±0.01° |
||
|
Track width |
1200-1700mm |
|||
|
Wheelbase |
1800-3600mm |
|||
|
Voltage |
110/220V, 50/60Hz, 1Ph |
|||
|
Dimension |
2 PKGS |
1230*850*1350mm 3088*490*490mm |
200 KGS |
|
.
