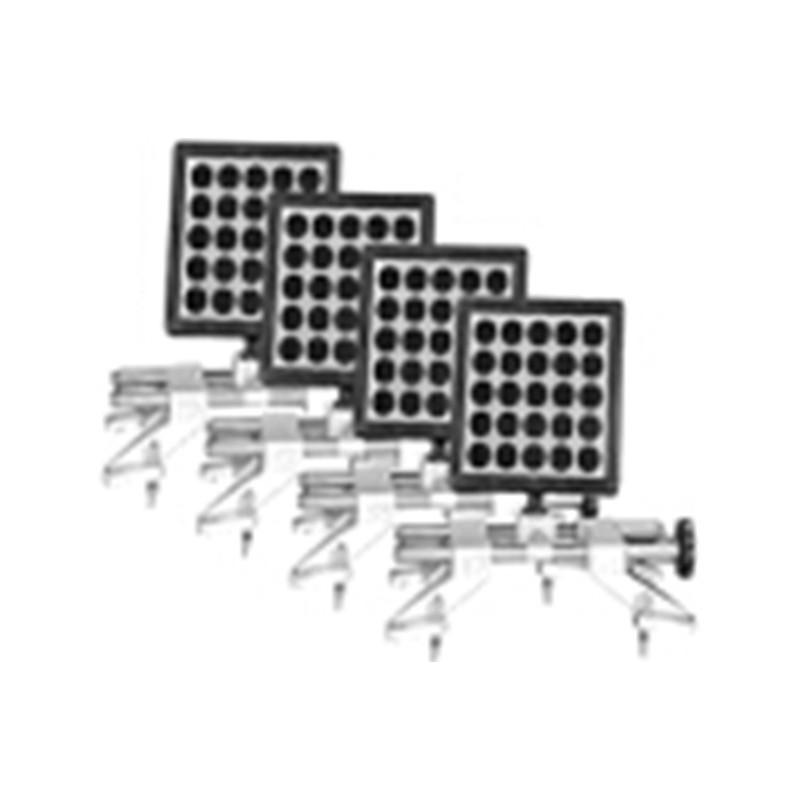

DLW5021 – 3D WHEEL ALIGNMENT – DUAL DISPLAY
Description
DLW5021 is the most advanced Wheel Aligner from DaTo that comes with dual display and provides low level display assuring proper legibility of the parameters while carrying out the alignment adjustments.

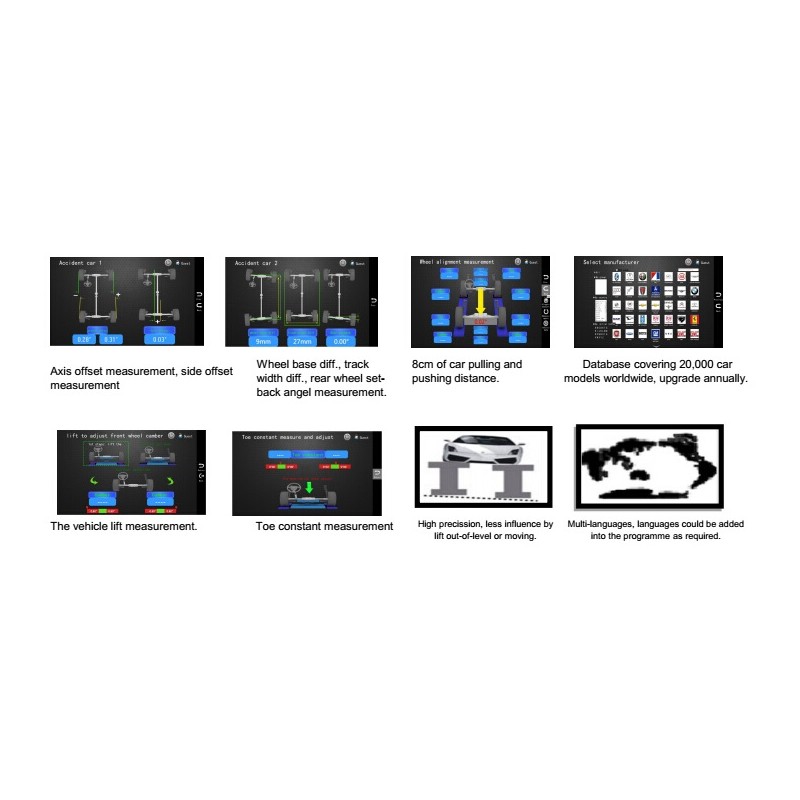

The advanced 3rd generation software let us the same application be controlled on a remote point via Tablet or mobile phone and hence its more easy and user friendly to check data and functions while making adjustments below the hoists.
SPECIFICATIONS:
|
PARAMETER |
RANGE |
PRECISION |
||
|
Total toe |
±20° |
±0.02° |
||
|
Individual Toe |
±20° |
±0.01° |
||
|
Camber |
±12° |
±0.02° |
||
|
Caster |
±25° |
±0.1° |
||
|
KPI |
±25° |
±0.01° |
||
|
Setback |
±9° |
±0.01° |
||
|
Thrust Angle |
±9° |
±0.01° |
||
|
Track width |
1200-1700mm |
|||
|
Wheelbase |
1800-3600mm |
|||
|
Voltage |
110/220V, 50/60Hz, 1Ph |
|||
|
Dimenssion |
3 PKGS |
950*850*1350mm 2620*500*400mm 3088*490*490mm |
240KGS |
|
.
