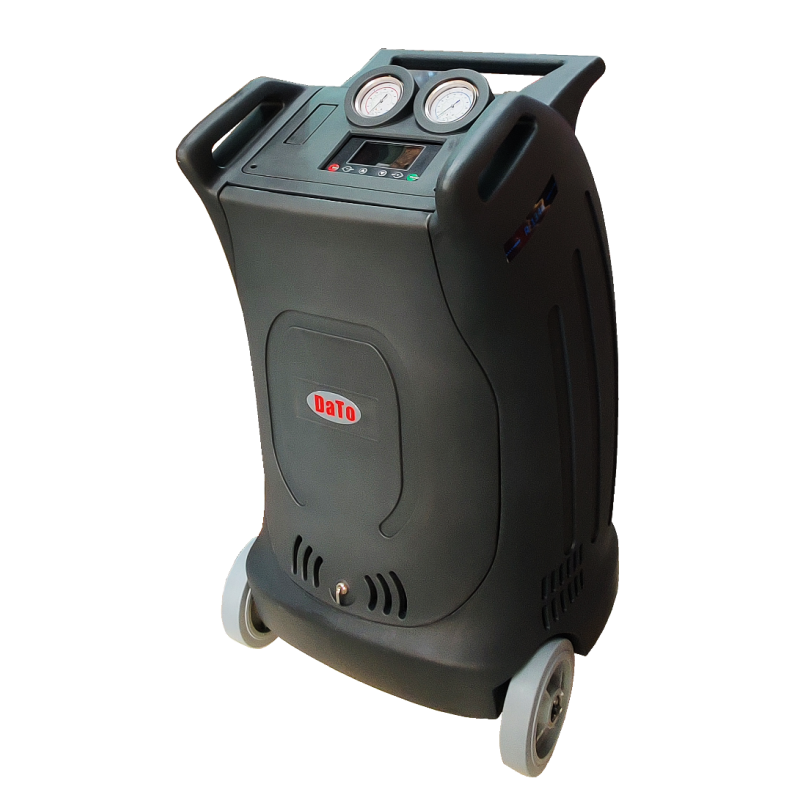

Acmas301 – AC Recycling Machine – PRO
AC Recycling Machine Description
DaTo AC recycling intelligent machine recovers, recycle, discharges used oil, refill new oil along with vacuuming the pipe line and recharge the A/C gas in the vehicles. It also has the automatic function to carry on the AC recycling process without the human monitoring with inbuilt vehicle database from 1995 to till date.
It recycles and reuses the AC R134a gas, instead of discharging AC gas direct into atmosphere and polluting the universe. It is also used to identify the leakage in the AC system.
Product Features
- Ergonomic design and user friendly interface

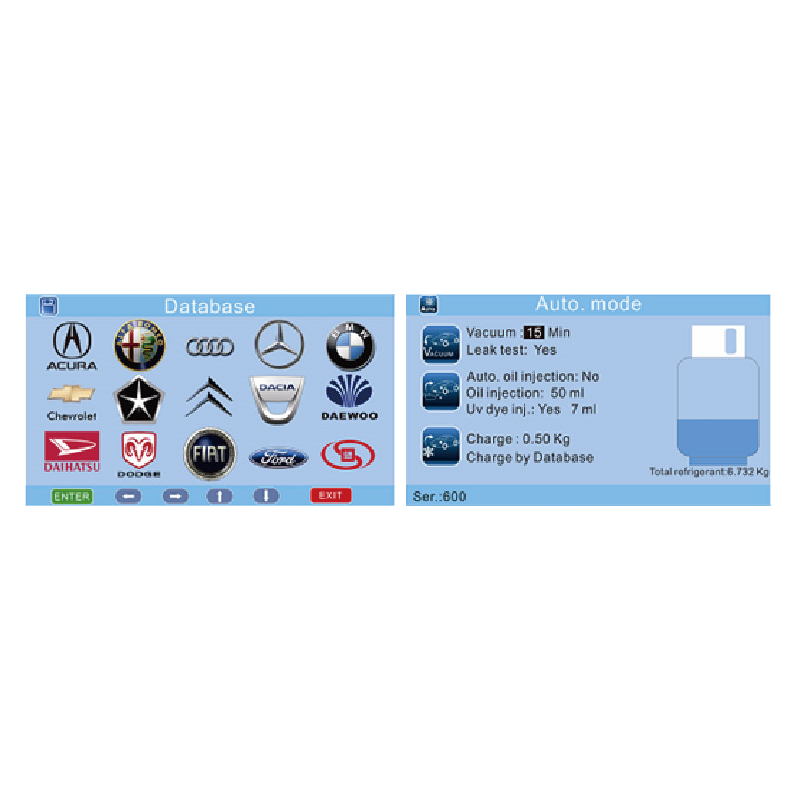

- Inbuilt vehicle database with regular update
- Inbuilt UV dye injection to identify the minor leaks.
- Vacuum Leak test function to identify the major leaks.
- Supports flushing option (Uni & bidirectional)
- Inbuilt thermal printer and heater band
- Quick recharging option-saves time and labor
- Pressurization to speedup used oil discharge
- Reliable hard ware and heavy duty compressor
- Innovative hand valve free design with condenser And cooling fans
- Highly efficient oil & gas separator
- Precise gas recovery in minutes time
Product Function
- Recovery
- Vacuum
- Oil injection
- Charge
- Fully Auto mode
- Flushing
- UV Dye injection
- Vacuum leak test
Specifications: |
||
| 1 | Input power | AC220V±10%~50/60Hz |
| 2 | Compressor power | 3/8HP |
| 3 | Average gas state
refrigerant recovery speed |
250g/min |
| 4 | Recovery rate | 97% |
| 5 | Vacuum pump capacity | 60L/min |
| 6 | Drier-filter capacity | 600ml |
| 7 | Accuracy of gas cylinder
load cell |
±10g |
| 8 | Accuracy of oil bottle
load cell |
±5g |
| 9 | Gas cylinder capacity | 10KG |
| 10 | New/used oil bottle
capacity |
250ml |
Specifications: |
||
| 11 | Max Pressure | 20 bar |
| 12 | Charge speed: | 2KG/min (Max.) |
| 13 | LCD display | 4.3-inch,TFT full color |
| 14 | High pressure gauge
range |
1~30bar |
| 15 | Low pressure gauge
range |
1~16bar |
| 16 | Dimension | 710*640*1190mm |
