ASPOP151 – 5:1 PNEUMATIC OIL PUMP
Description
The DaTo Hydraulic Pump units are ergonomically designed to operate with pneumatic power avoiding any chances of sparks for safety purposes.
Main Features:
The heavy duty pump provides a ratio of 5:1 for most of the industrial applications.
- Provides high volume and longer distance application
- Smart design with fewer rotating parts to assure low wear and tear.
- Differential pneumatic motor ensures smooth pumping.
Specification |
|
| Drum application | Pail |
| pressure ratio | 5:01 |
| Air inlet pressure | 5-12 bar/70-180 Psi |
| Max. fluid pressure | 60 bar/870 Psi |
| Air motor effective diameter | 76.2mm/3″ |
| Max. free flow rate(min) | 40L/11 gallon |

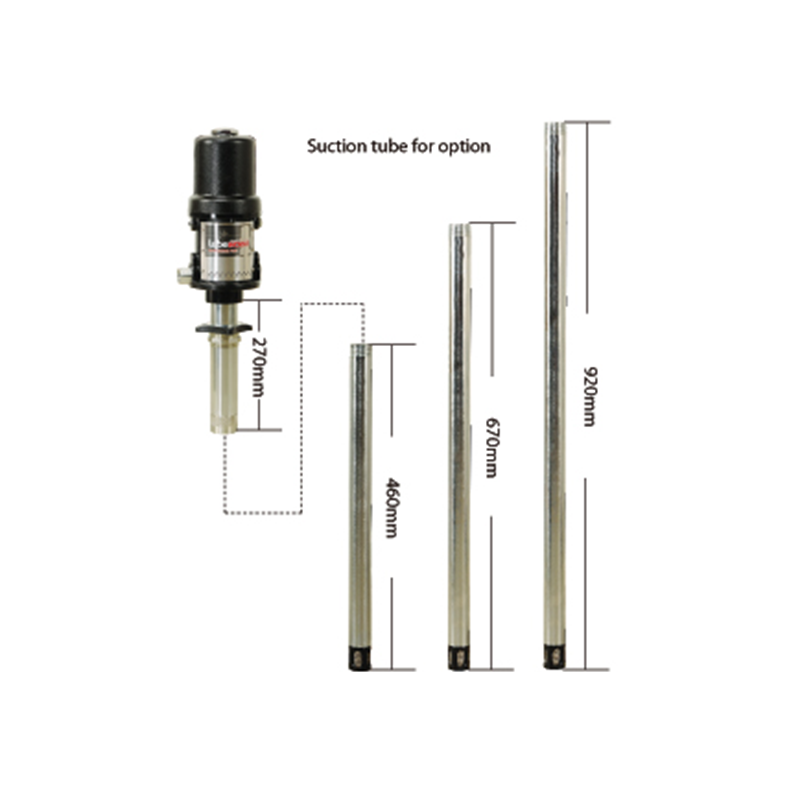

| Suction tube diameter | 54mm/2.1″ |
| Suction tube length | 270mm/11″ |
| Air inlet connection | 1/4″ quick plug , 1/4″ NPT female |
| Oil outlet connection | 3/4″ F |
| Accessory | 3/4″M – 1/2″ F |
| Weight | 7.8Kg/17 lbs |
| SAE30 oil, +20°C,2 Mtr hose length free outlet | |
