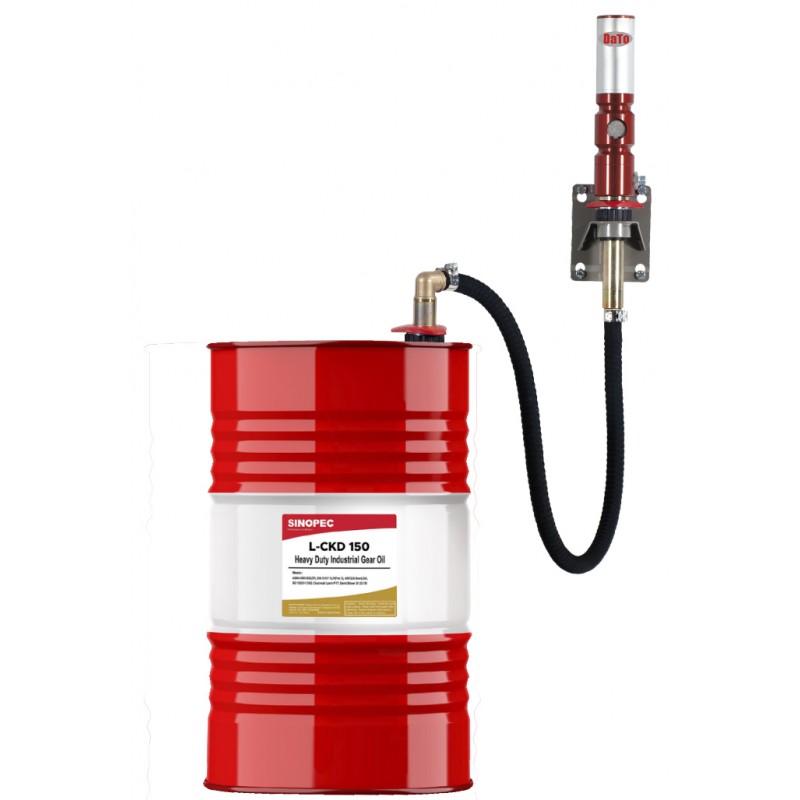

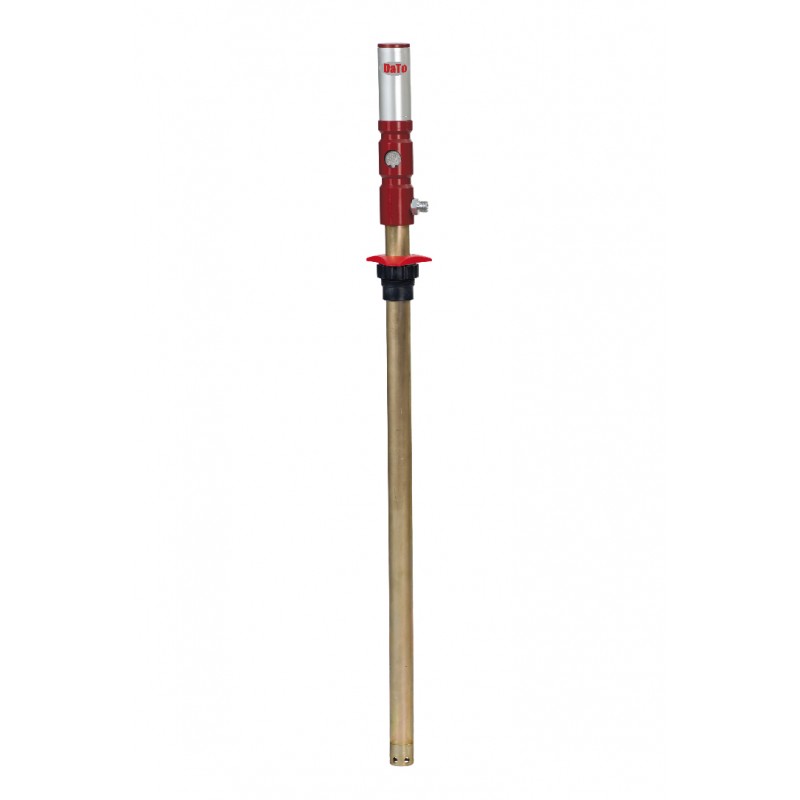

PNEUMATIC OIL PUMP – ASPOP
DESCRIPTION
DaTo pumps are advised for the transfer of low medium viscosity oil (SAE 15/130), similar and antifreeze. The delivery capacity of a pump varies according to particular applications and combination:
- The pressure of air supplied;
- Viscosity and temperature of fluid;
- Dimension of delivery hose.
- Dimension of connections and type of gun.
To optimize the performance and the time-life of air-operated pump advise to use filtered and lubricated air.
SPECIFICATION
| PARAMETERS | ASPOP131I | ASPOP151I |
| Drum application | Drum | Drum |
| Pressure ratio | 3:01 | 5:01 |
| Air inlet pressure | 6-8 bar | 6-8 bar |
| Max. free flow rate(min) | 25L | 28L |
| Suction tube diameter | 42mm | 42mm |
| Suction tube length | 940mm | 940 mm |
| Air inlet connection | 1/4″ F | 1/4″ F |
| Oil outlet connection | 1/2″ M | 1/2″ M |
