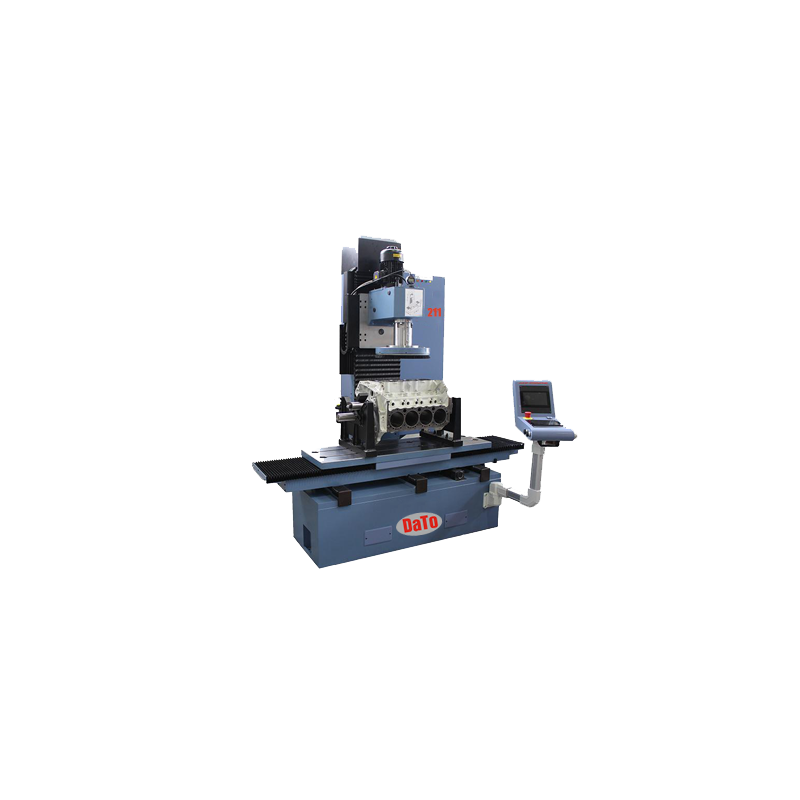

CNC – CYLINDER VERTICAL BORING SURFACING MACHINE – MECBS211
Description
DaTo Machine tools and equipment for reconditioning of Engine parts like cylinder heads, blocks, valves of motorcycles, cars, commercial vehicles, trucks and marine engines.
The MECBS211 CNC boring machine combines the two main operations of reconditioning the Monobloc’s of cars and trucks, such as boring and smoothing, in a single machine and now completely automatically thanks to CNC control.
The finest finishing and precision qualities that characterize it are the result of a combination of a proven mechanical design and the introduction of highly innovative technology solutions that make it smart even faster and more practical to use.
Standard equipment
- Computer Numerical Control using LINUX Operating System and ARMv8 CPU Processor
- Precision Ball screw drives on 3 Axis
- Movements by linear railways on 3 Axis
- Brushless motors on 3 axis controlled by CNC

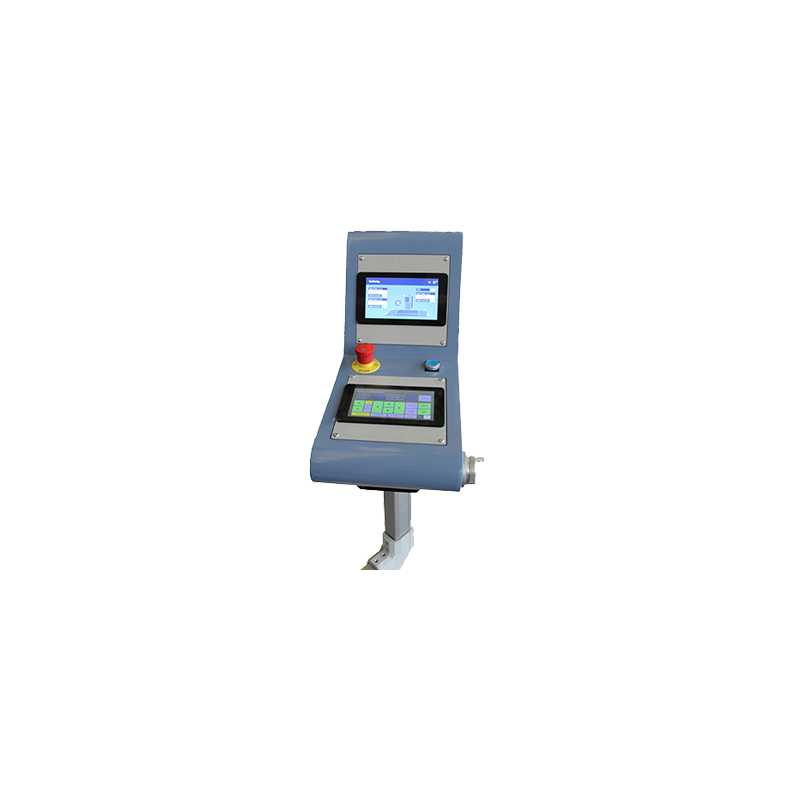

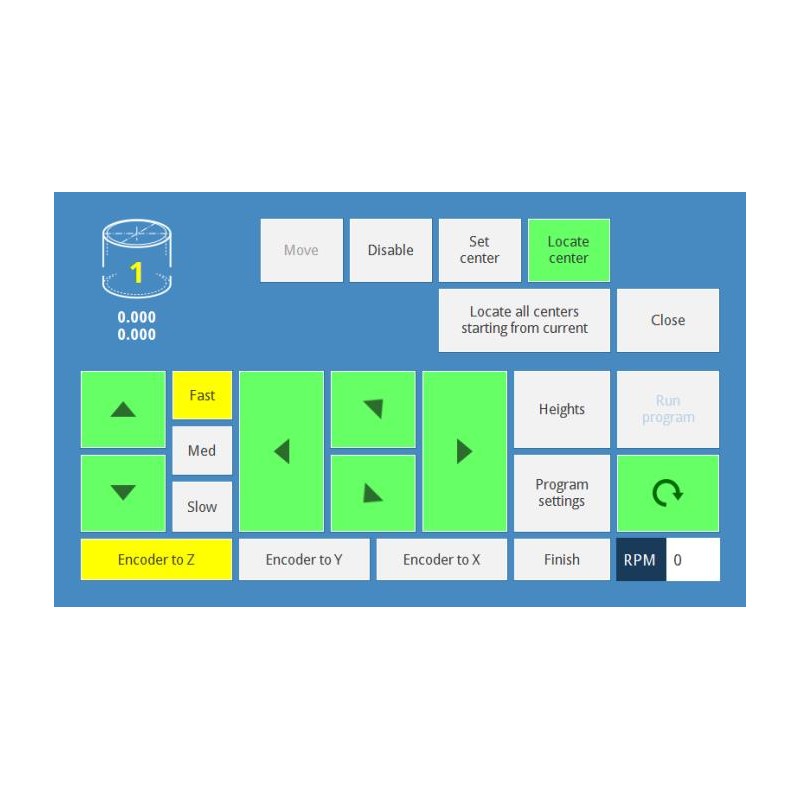

- Swing arm control panel with double touch screens
- Electronic Hand wheel for manual displacement on 3 Axis (Fast-Medium-Fine speeds)
- Full automatic and programmable working modes for boring and milling operations
- WI-FI and LAN connections for support and service
- PV0160 pair of parallel supports
- PV0021 large clamps (2 pcs.)
- PV0022 small clamps (4 pcs.)
- Wrench set
- Instruction manual
Specification
|
Boring range |
30÷170 mm |
|
Max Vertical travel of the Head |
700 mm |
|
Min-Max distance from head to table |
370÷1020 mm |
|
Distance between spindle C/L and column |
290 mm |
|
Adjustable spindle rotation speed |
75÷850 rpm |
|
Adjustable boring bar feed |
0÷3000 mm/min. |
|
Table surface |
1340×370 mm |
|
Max longitudinal table travel |
1200 mm |
|
Max transverse table travel |
200 mm |
|
Adjustable table feed |
0÷3000 mm/min |
|
Spindle motor power |
1.5 kW |
|
Rapid feed motor power |
1.27 N/m |
|
Table and travers feed motor power |
1.27 N/m |
|
Dimensions |
2045x1245x2175 mm |
|
Net weight |
1540 Kg |
