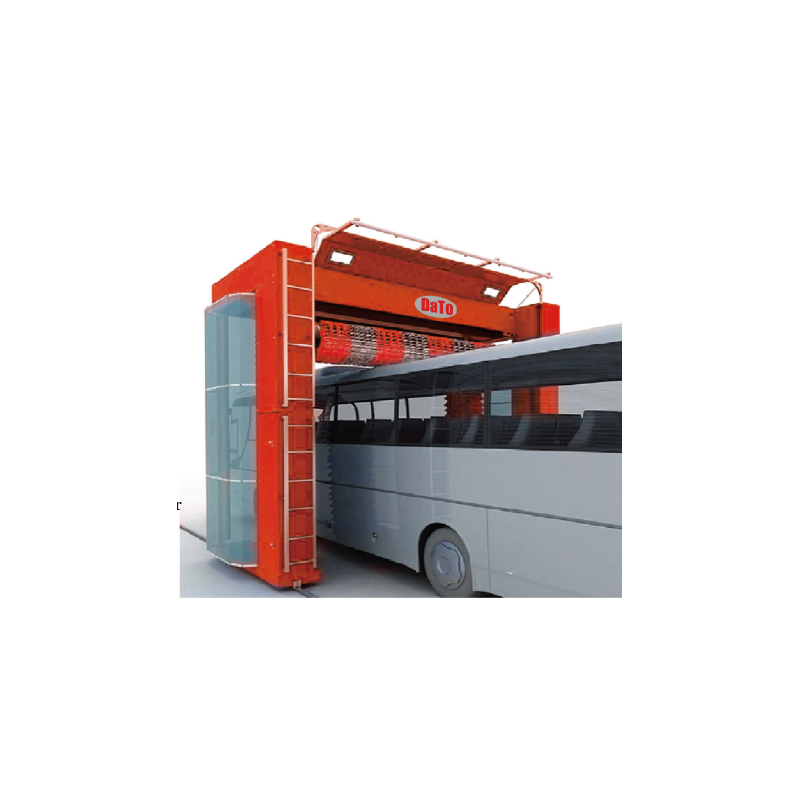

AUTOMATIC BUS & TRUCK WASH – CWSHD601
Description
The CWSHD 601 series bus wash equipment is fully automatic system. The equipment are roll over gantry type systems, where the vehicle is driven in by the customer. The equipment use experienced brush washing technology. The complete equipment is built as modular structure and transported in partly – assembled form. The complete structure is galvanized and painted, to avoid corrosion in the harsh bus wash conditions.
Features
1. Cost-effective use for bus & coach, city bus, double deck.
2. Multiple wash programs, contains all the necessary functions
For a successful washing operation.
3. Nylon brush, washes gently without wearing.
4. Frequency control at the travel and lift drives for a careful,
Smooth running and variable speeds.
5. Precise control, contour-tracking washing,
Specification
| Machine sizes | 2150x5780x5800 mm (L*W*H) |
| Machine Weight | 3500 kg |
| Power | 8 Kw + 5.5 Kw |
| Washable car sizes | 12000x2800x4200 mm (LxWxH) |
| Rail Length | 20900 mm |
| Width Between Rails | 4250 mm |
| Washing Time | 3-6 min/car |
| Water consumption | 150 liters/car |
| Air pressure | 5-6 bar |
| Power Supply | 380V,50Hz |
