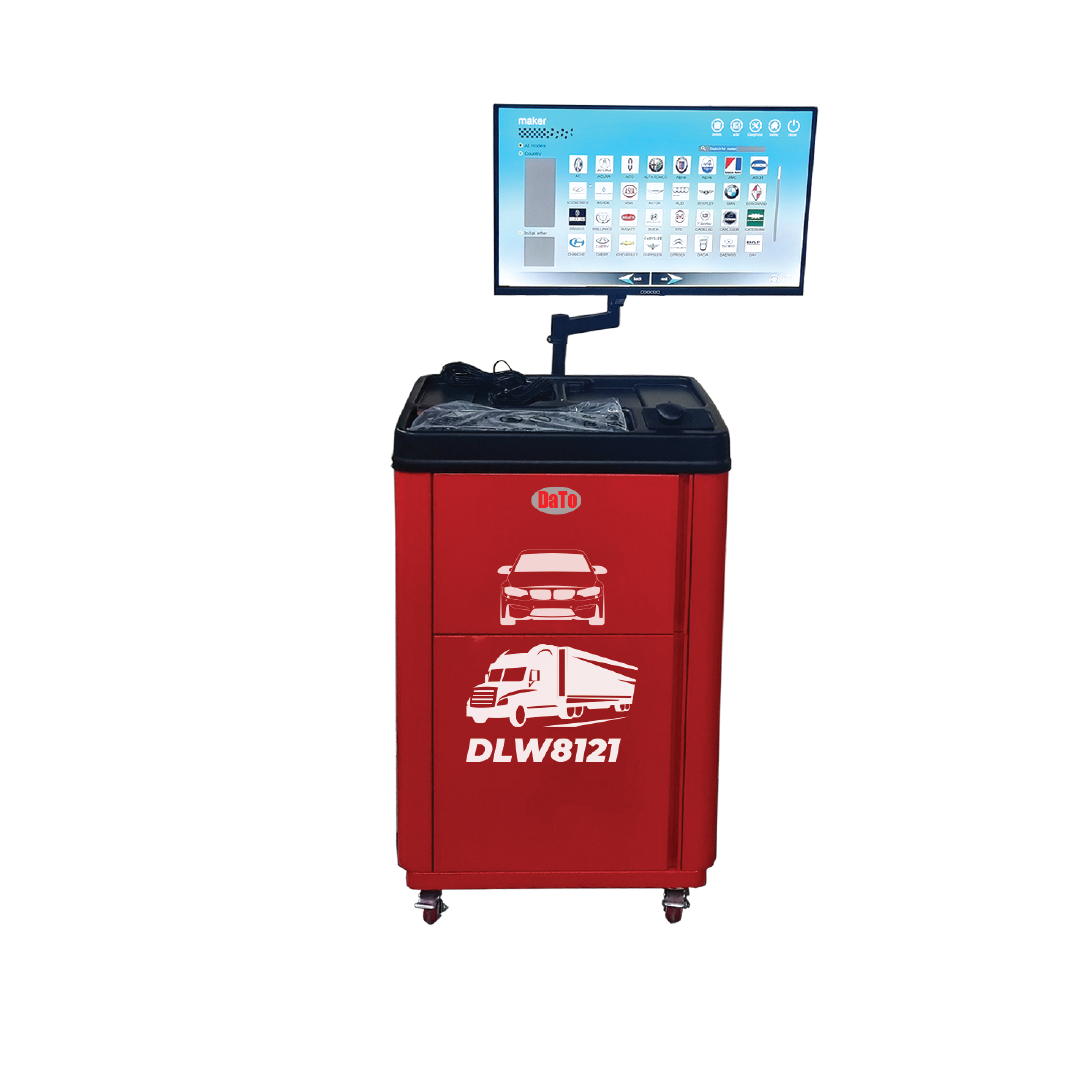

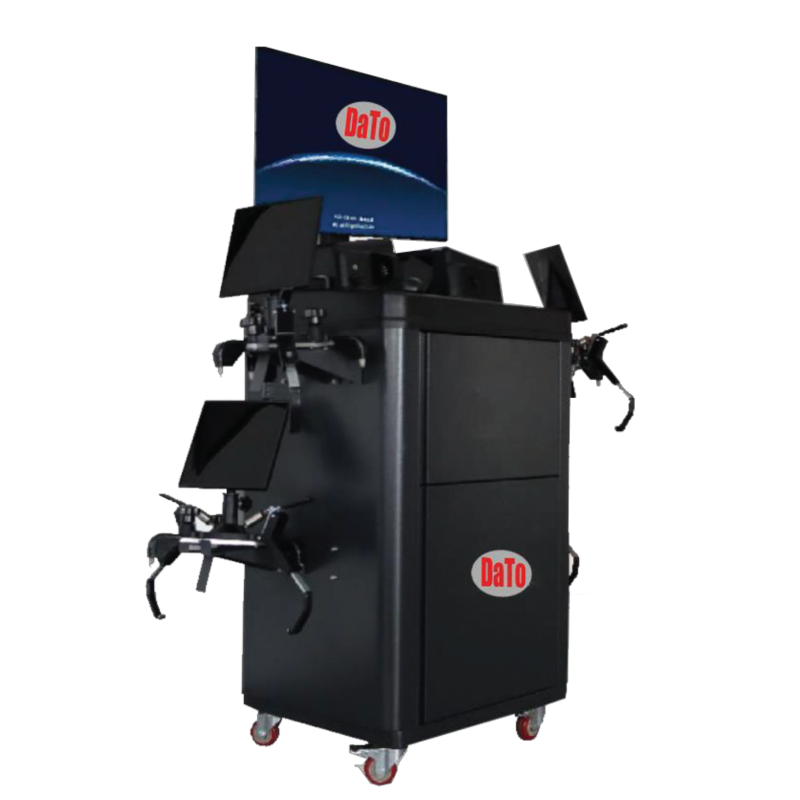

COMPACT WHEEL ALIGNMENT – DLW 8121
DaTo Compact Wheel Alignment Machine DLW8121 is the most advanced Tire(Tyre) Aligner from DaTo that is implemented for the space saving purpose with the advanced technology development and Micro pc control, two side details at same time. The advanced 3rd generation software with the Optional features of using same application be controlled on a remote point via Tablet or mobile phone and hence it’s more easy and user friendly to check data and functions while making adjustments below the hoists.
Features

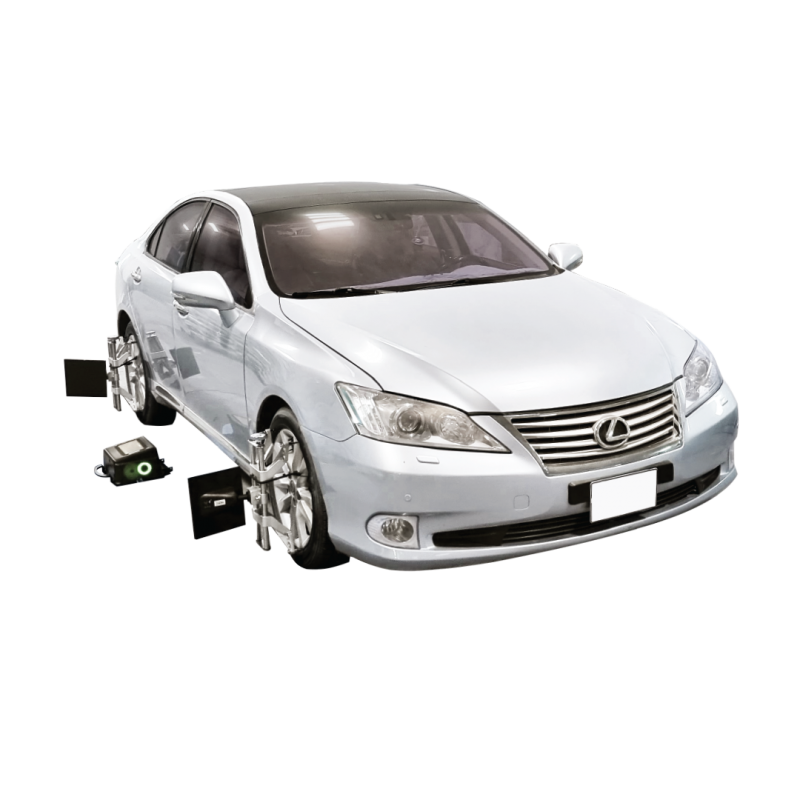

1. The 3D camera is fitted on the Scissor or four post lift, hence save the space of 2
meter in front of the lift. No Beam and Pole support for cameras.

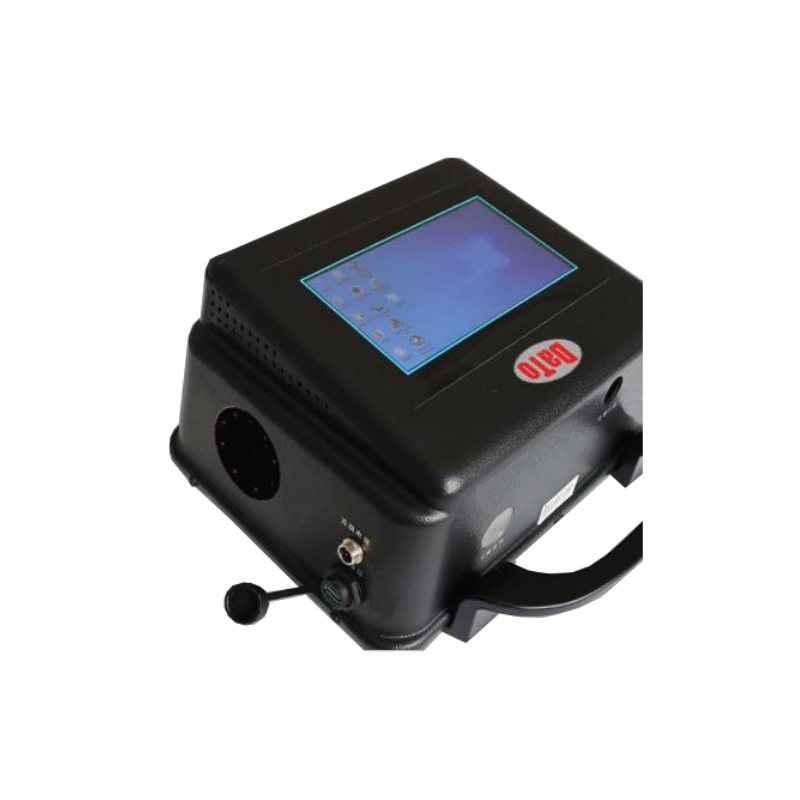

2. Touch screen Micro Pc on the camera with the High precision measurement.
3. Small Modern target plates.
4. Camera battery support the long time usage of about 6 to 8 Hours.
5. 13-23” big wheel for E cars insulated tyre holding clamps Optional.
6. Portable Alignment console can be positioned anywhere for the ultimate convenience.
7. Camera connects on Wi-Fi technology.
Specification
| NAME | ACCURACY | REMARK |
| Toe | ±0.01º | Front and rear wheel |
| Camber | ±0.02º | Front and rear wheel |
| Caster | ±0.03º | |
| KPI | ±0.03º | |
| Set Back Angle | ±0.01º | |
| Thrust Angle | ±0.01º | |
| Track Width | ±1 mm | |
| Wheel Base | ±2 mm |
| Dimension | 2 PKGS | 950*850*1350mm
950*850*1050mm |
180kgs |
