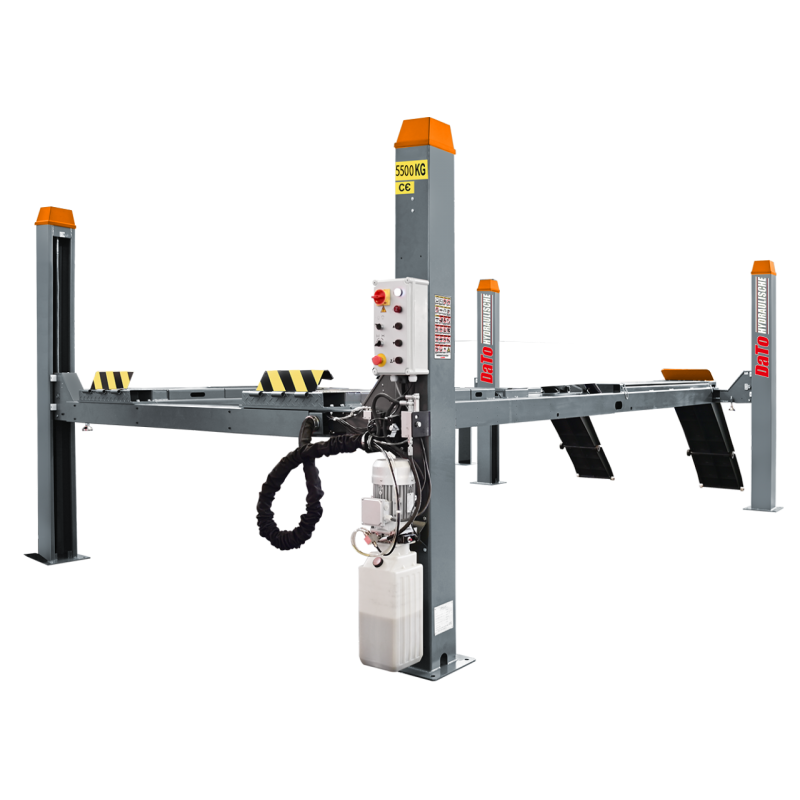

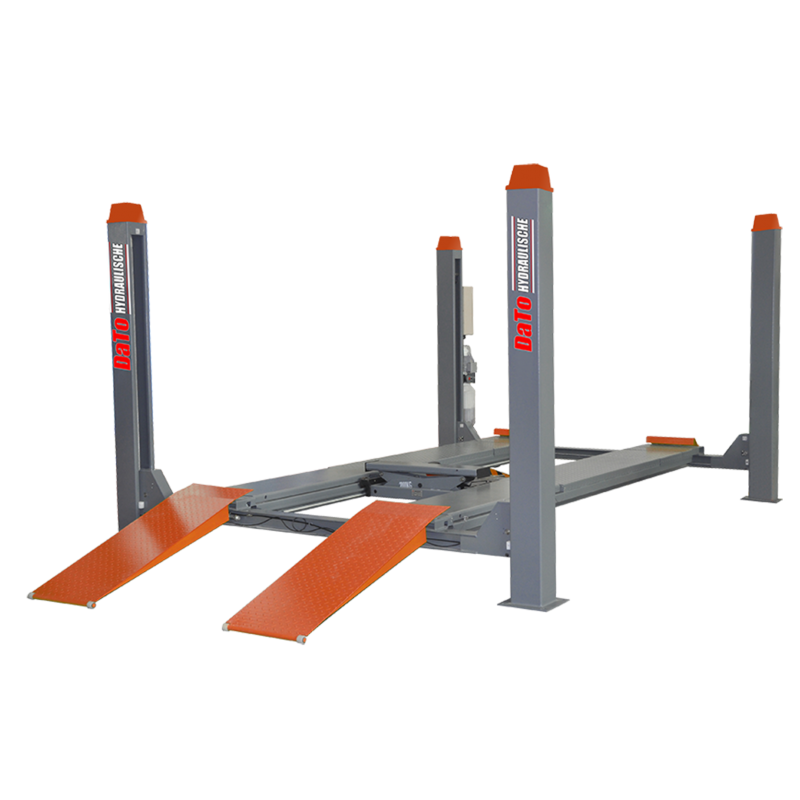

LJP4104 – 4.0Tons FOUR POST LIFT – WHEEL ALIGNMENT
Description
The Four Post lifts are most suited for Quick Oil Change as well as the most economic and professional lifting facility available for the Alignment. Equipped with a Center Rolling Jack, the DaTo 4 post lift seems to be the wise choice for any class of Service Center.
Features:
- Fully Powder Coated lift
- Durable Teflon Balls for Side Slip
- Additional Safety locking Mechanism
- Protected to complete operational stability
- Quick installation possible
- Low noise operation
- Center Rolling Jack of 2 Tons
LJP4104 Four Post Lift Specifications
|
Item |
Parameter |
|
|
For alignment |
For service |
|
|
Drive |
Electrical hydraulic |
|
|
Max lifting weight |
4Ton |
|
|
Lifting height |
1896mm |
1846mm |
|
Platform initial height |
246mm |
196mm |
|
Platform length |
4660mm |
|
|
Platform width |
490mm |
|
|
Lifting Time |
≤50S |
|
|
Lowering Time |
≤60S |
|
|
Overall width |
3340mm |
|
|
Overall length |
5949mm |
5951mm |
|
Overall weight |
1520kg |
1270 kg |
|
Power Supply |
220/380V |
|
|
Motor Power |
2.2Kw |
|
|
Air supply |
4-6kg/cm2 |
|
|
Hydraulic oil |
18 L 20# high abrasive hydraulic oil |
|
|
Noise level |
<76db |
|
|
Installation height |
Height above sea level ≤1000M |
|
|
Optional |

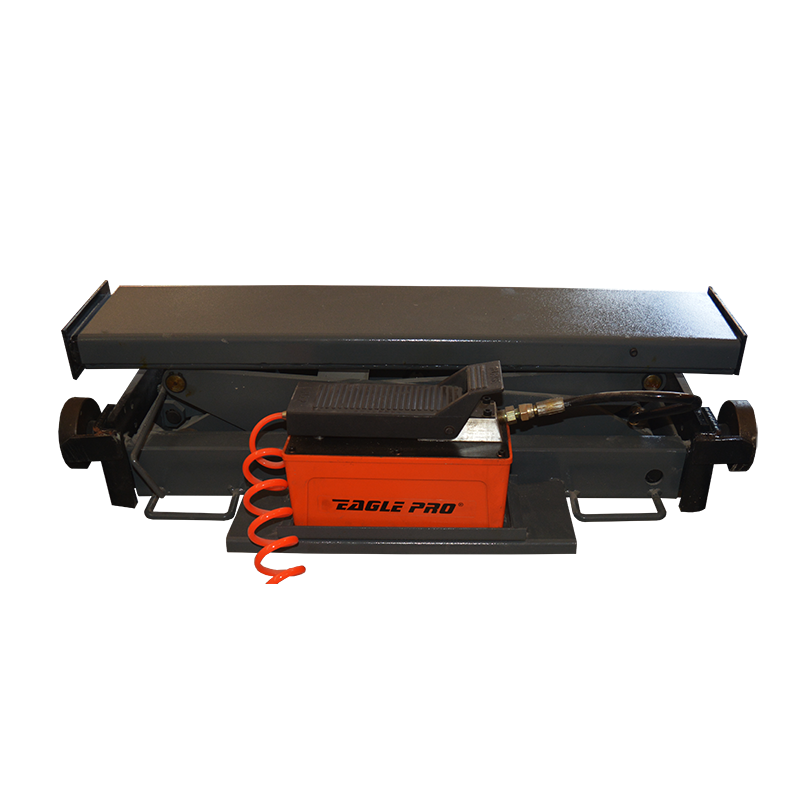

Rolling jack |
|
|
Rolling Jack lifting Weight |
2000kg |
|
|
Rolling jack lifting height |
375mm |
|
|
Rolling jack lifting length |
870-1400mm |
|
|
Rolling jack wheel distance |
780-1100mm |
|
|
Rolling jack lifting time |
Electrical RJ≤8s |
|
|
Manual or pneumatic RJ ≤20s |
||
|
Rolling jack lowering time |
≤10S |
|
|
Rolling jack weight |
110kg |
|
.
