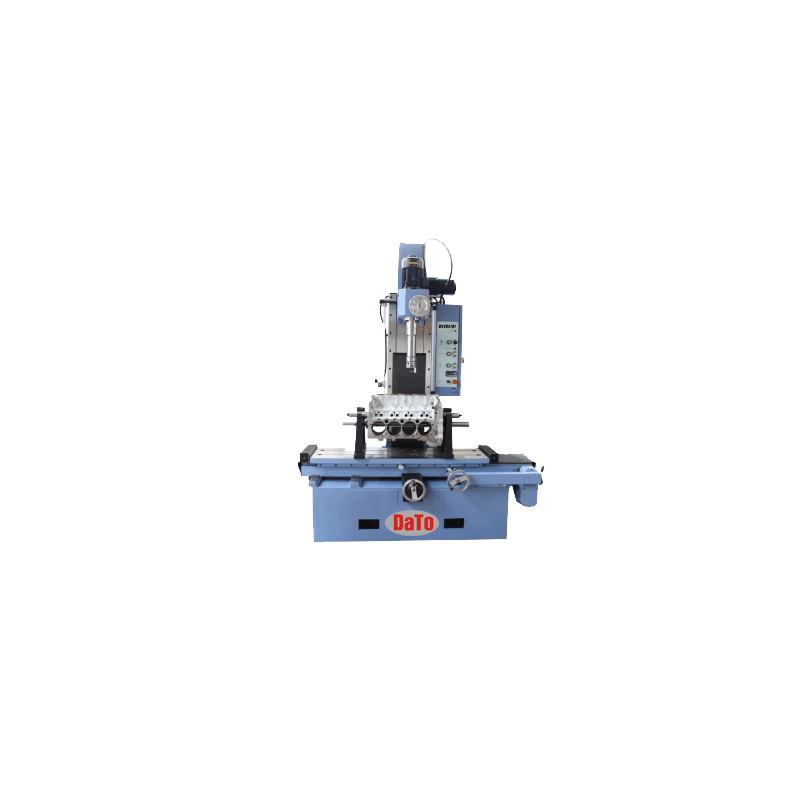

CYLINDER VERTICAL BORING SURFACING MACHINE – MECBS201
Description
DaTo Machine tools and equipment for reconditioning of Engine parts like cylinder heads, blocks, valves of motorcycles, cars, commercial vehicles, trucks and marine engines
The cylinder boring/resurfacing machine MECBS201 includes both main reconditioning operations of automotive and truck cylinder blocks – boring and resurfacing – in one single machine, with performances that are usually available only on higher level models. Despite its compact dimensions, the technical features of this machine ensure considerable work capacities, thanks to the wide longitudinal and transverse table feed and to the vertical feed of the head.
The excellent qualities of finishing and precision are obtained by combining a tested mechanical structure with innovative technical solutions, which improve the performance and versatility of the machine
Standard Features
- Adjustable spindle speed with digital indicator
- Adjustable boring bar feed
- Adjustable table feed (only model MECBS201)
- 1/2” CBN or PCD milling plate dia. 320 mm
- Tool setting dial indicator with magnetic base
- Depth of boring device with dial indicator
- Precision centering device with dial gauge
- Adjustable control stop
- PV0160 Pair of parallel supports
- Wrench set
- Instruction manual
Specification
|
Boring range |
30÷170 mm |
|
Max Vertical travel of the Head |
670 mm |
|
Min-Max distance from head to table |
370÷1020 mm |
|
Distance from spindle center to column |
290 mm |
|
Adjustable spindle rotation speed |
75÷850 rpm |
|
Adjustable boring bar feed |
0÷175 mm/min. |
|
Table surface |
1340×370 mm |
|
Max longitudinal table travel |
1200 mm |
|
Max transverse table travel |
200 mm |
|
Adjustable table feed |
0÷460 mm/min. |
|
Spindle motor power |
1.5 kW |
|
Rapid feed motor power |
0.37 kW |
|
Table feed motor power |
0.55 kW |
|
Dimensions |
(LxWxH)1860x1150x2170 mm |
|
Net weight |
1380 Kg |
