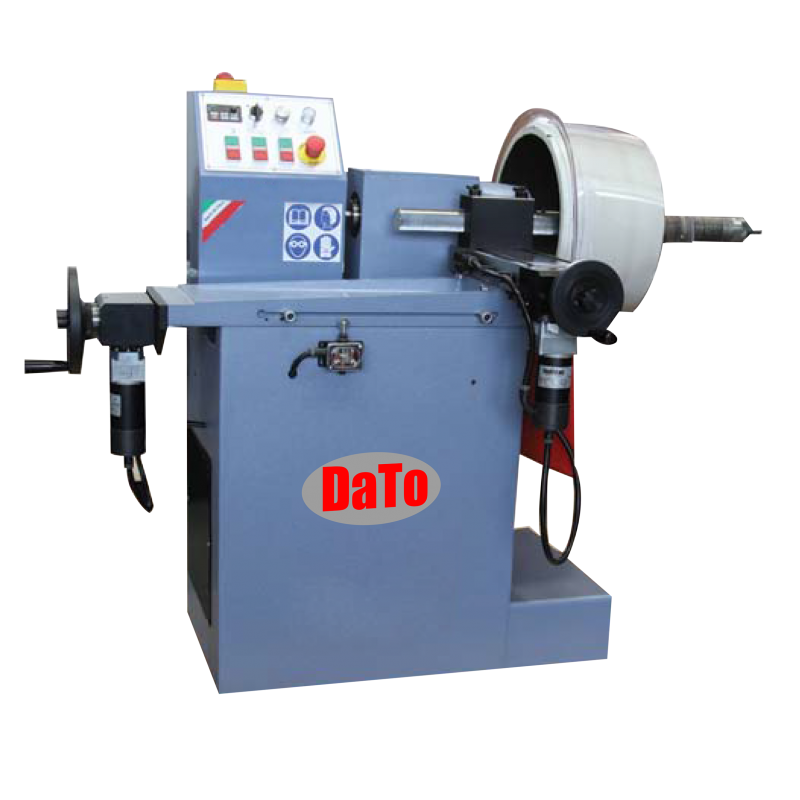

METSE301 – HEAVY DUTY BRAKE DISC AND DRUM LATHE FOR CARS AND TRUCKS
Description
The METSE301 is a lathe-grinding machine for reconditioning brake discs, drums and flywheels of trucks, commercial vehicles and cars. It is the top model in our product range and one of the most complete and sophisticated brake lathe currently available on the market. The sturdiness and rigidity of the body, together with the large 60 mm diameter arbor and its bearing spindle, dump all vibrations and ensure the correct machining without the use of the support tailstock (available on demand), so as to ease and speed up the mounting procedure, even on wheels with mounted tires.

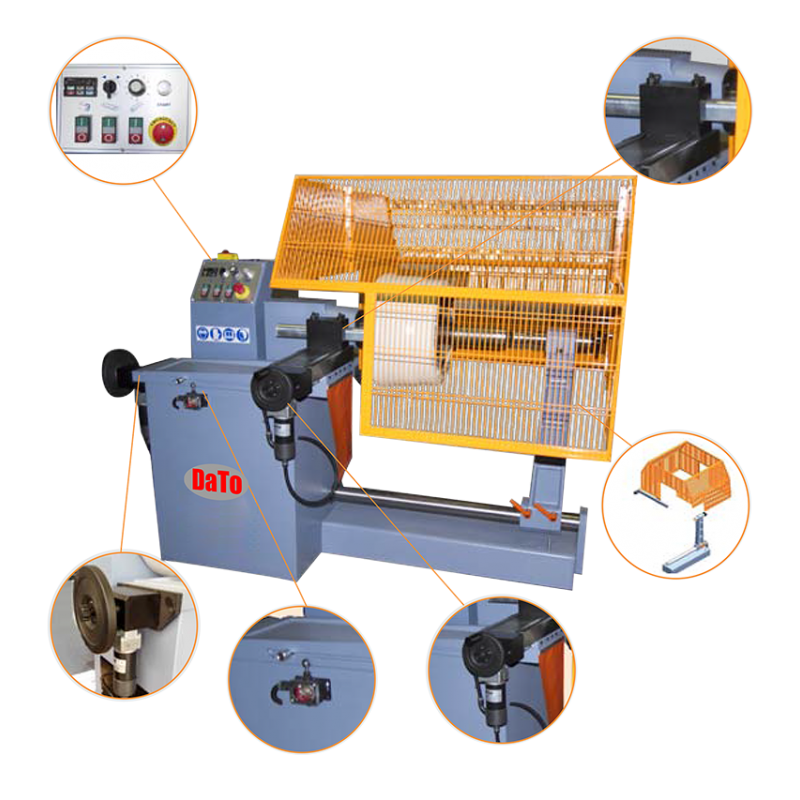

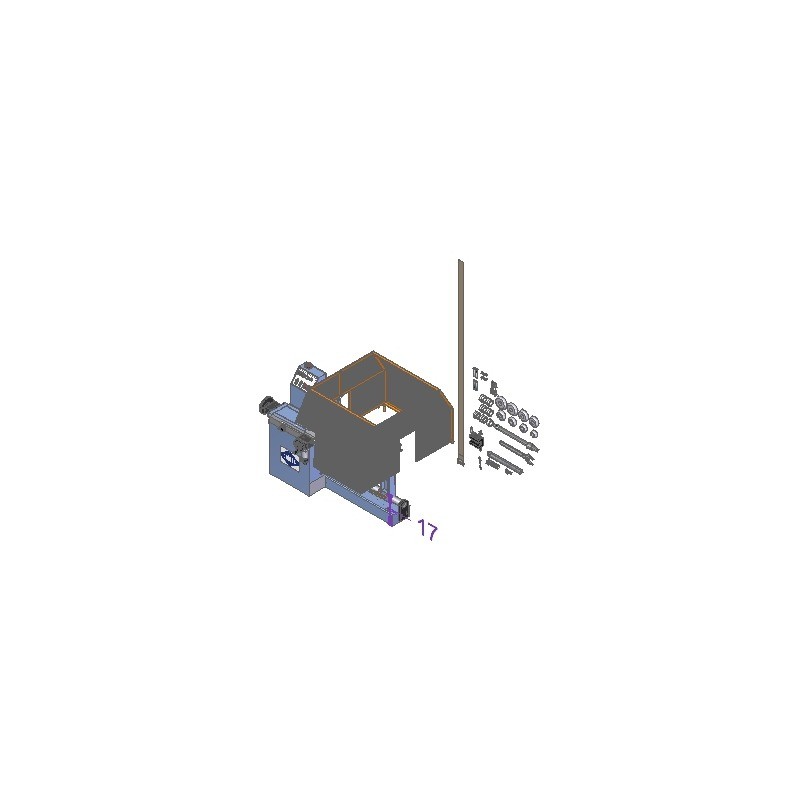

CONFIGURATION:
- Adjustable spindle speed with digital display
- Adjustable and intermittent feed on longitudinal table
- Integrated halogen spot light
- Boring bar support
- Boring bar for large drums
- Ø 20 mm drum turning insert tool holder
- Drum turning insert tool holder 12x12x80 mm
- Truck drum silencer band
- Safety guard
- Chip-collector tank
- Ø 60 mm shaft with nut and spanner
- Ø 60 mm spacers (4 pcs.)
- Centering cones (8 pcs.)
- Wrench set
- Instruction manual
SPECIFICATIONS: |
|
| Min-Max drum turning diameter | 150÷1170 mm |
| Min-Max disc turning diameter | 855 mm |
| Longitudinal table travel | 410 mm |
| Cross slide travel | 145 mm |
| Spindle rotation speed | 30÷120 rpm |
| Longitudinal table feed | 0÷30 mm/min |
| Cross slide feed | 0÷30 mm/min |
| Spindle motor power | 1.5 kW |
| Table motor power | 0.07 kW |
| Dimensions (LxWxH) | 1970x1400x1470 h |
| Weight | 655 kg |
