DaTo PBBSF122 Paint Booth – Standard Model | High Gloss Automotive Spray Booth
The DaTo PBBSF122 paint booth is the standard model in DaTo’s automotive spray booth lineup — built to offer reliable performance, balanced airflow, and premium drying efficiency. Outfitted with two powerful blowers (one turbo‑speed motor and one 5.5 kW exhaust blower), it achieves an impressive 22,000 m³/h airflow volume, ensuring clean, fast, and uniform paint coverage.
DaTo PBBSF122 Paint Booth – Standard Design for Professional Body Shops
Equipped with a diesel‑powered Italian burner, the booth maximizes heating uniformity for fast, dust‑free baking results, often eliminating the need for post‑polishing. Optimized for high‑speed glossy coating, it combines energy efficiency with a professional finish suited for both solvent‑based and water‑based paints.
Key Features & Capabilities
-
Powerful Dual‑Blower System – Includes a turbo‑speed blower motor and a 5.5 kW exhaust blower for superior ventilation and air pressure balance.
-
High Airflow Performance – 22,000 m³/h capacity ensures optimal air exchange for cleaner finishes and faster drying.
-
Italian Diesel Burner – Quick‑bake functionality shortens curing time and guarantees a smooth, dust‑free paint surface.
-
Wide‑Angle Spray Coverage – Exhaust blower design improves paint spread and minimizes overspray for consistent coverage.
-
Cleaner & Safer Workspace – Maintains dust‑free operation and reduces fume inhalation risks for operators.
-
Durable & Insulated Body – Puff‑panel construction enhances heat efficiency and structural longevity.
-
High Productivity Rate – Reduces rework and refinish time, boosting overall throughput and cost efficiency.
-
Eco‑Friendly Filtering System – Filters paint particles and exhausts clean air to maintain a pollution‑free environment.
-
Professional Finishing Quality – Delivers factory‑level paint output with enhanced gloss and texture.
Technical Highlights
| Parameter | Specification |
|---|---|
| Design Type | Standard |
| Airflow Volume | 22,000 m³/h |
| Blower Configuration | 1 Turbo Motor + 1 5.5 kW Exhaust Blower |
| Burner Type | Italian Diesel Burner |

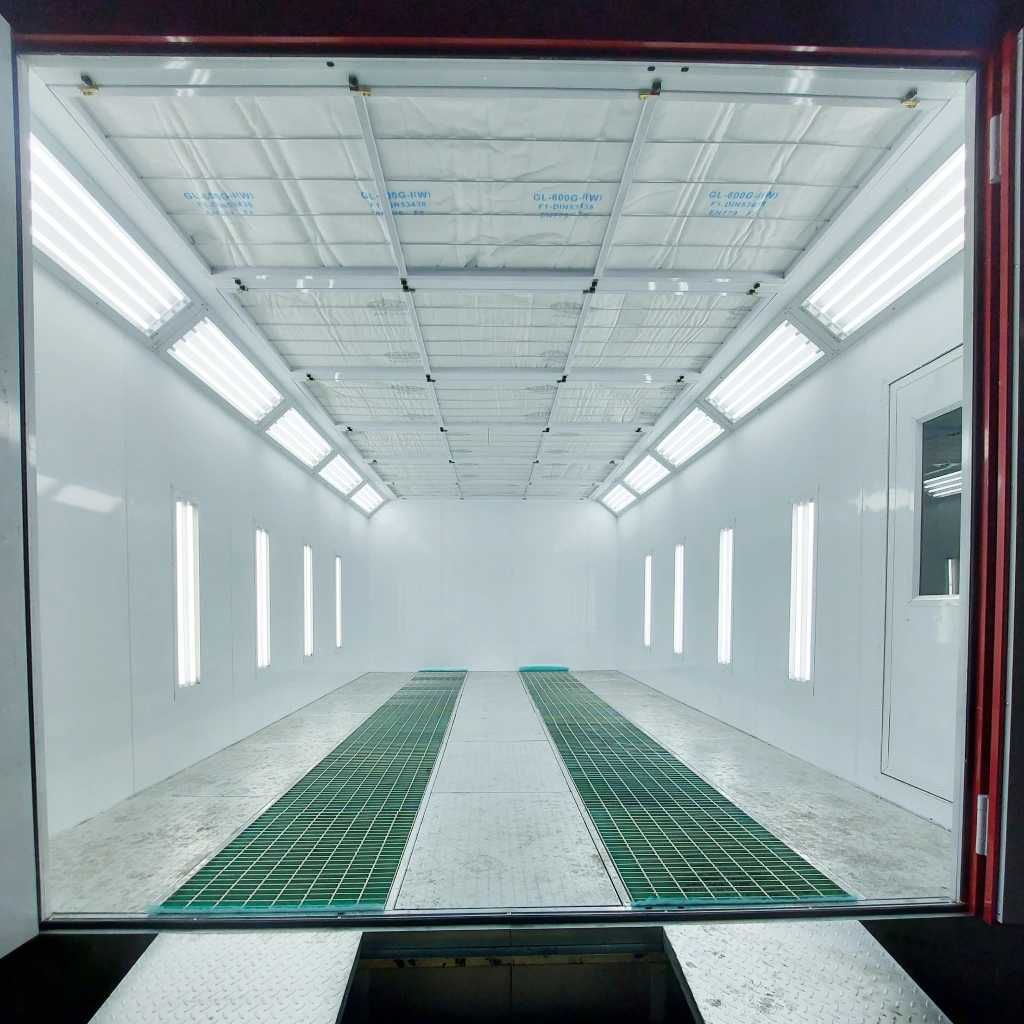

| Painting Chamber | Dust‑Free Painting & Baking Facility |
| Function | Painting, Baking, and Gloss Finish |
| Air Velocity | Optimized for Overspray Control |
| Safety | Exhaust Fume Filtration & Clean‑Air Circulation |
| Energy Efficiency | Low Power Consumption |
| Suitable For | Cars, SUVs, MPVs, LCVs |
| Construction | Puff‑Insulated Panels for Extended Lifespan |
Specifications
| PARAMETER | PBBSF122 |
| Overall Dimension (m) | 7.0*5.3*3.5 |
| Inner Dimension (m) | 6.9*3.9*2.7 |
| Drive Through Door Width (m) | 3 |
| Drive Through Door Height (m) | 2.7 |
| Steel Plate Thickness (mm) | 0.326 |
| Filtrated Area (m²) | 20 |
| Air Flow Volume (m³/h) | 22000 |
| Air Velocity within booth (m/s) | 0.25~0.35 |
| Ventilation Times (times/hr) | 265 |
| Working Temperature ( °C) | 60~80 |
| Oil Consumption (kg/set) | 6~8 |
| Insulation material of Wall Panel | PE |
| Power (KW) | 13.5 |
| Main Blower | Inlet 7.5 KW Professional Blowers & Exhaust 5.5 KW Standard Blower |
Why Choose DaTo PBBSF122 Paint Booth?
-
Built with DaTo’s proven industrial engineering for consistent results.
-
Fast baking and curing for high‑gloss finishes with fewer polishing steps.
-
Enhances operator health and safety with clean airflow management.
-
Low maintenance and energy‑optimized operation lower ongoing costs.
-
Tailored for automotive workshops, detailing centers, and custom paint shops.
