DaTo PBBWF123 Paint Booth – Standard Design, Water-Based System

DaTo PBBWF123 Paint Booth features Italian burner technology, 30,000 m³/h airflow, and 3 accelerator blowers for powerful, glossy, dust-free painting. Ideal for professional workshops needing a standard water-based spray booth solution with durability and energy efficiency.



CATALOG

Get Quote

The DaTo PBBWF123 Paint Booth represents the standard model of DaTo’s advanced water-based spray booth series — built for workshops requiring higher airflow and professional-grade finishing quality. Equipped with a high-performance Italian Burner, two main blowers, and three accelerator blowers, this booth achieves exceptional gloss finishes with fast drying and uniform air circulation.

Its specialized 360° rotating air nozzles and high suction exhaust blower deliver perfectly distributed airflow (30,000 m³/h), minimizing overspray while enhancing the painter’s visibility and safety. Built for durability, efficiency, and reliability, it’s the ideal choice for automotive body shops targeting factory-level paint finishes and rapid turnaround times.

Key Features & Capabilities

  • Optimized Water-Based System – Designed for high-gloss, solvent or water-based paints with superior finish results.

  • Italian Burner Excellence – Ensures consistent heating for fast baking cycles and uniform color curing.

  • Dual Blower System + Accelerator Blowers – Two primary blowers combined with three accelerator blowers create 360° directional airflow for even coverage.

  • High Airflow Volume – Delivers 30,000 m³/h of airflow for efficient dust extraction and smooth spray performance.

  • Advanced Exhaust Function – Strong suction capability eliminates overspray, reduces fumes, and enhances operator comfort.

  • Energy Efficient Design – Combines performance with low running costs thanks to DaTo’s engineering optimization.

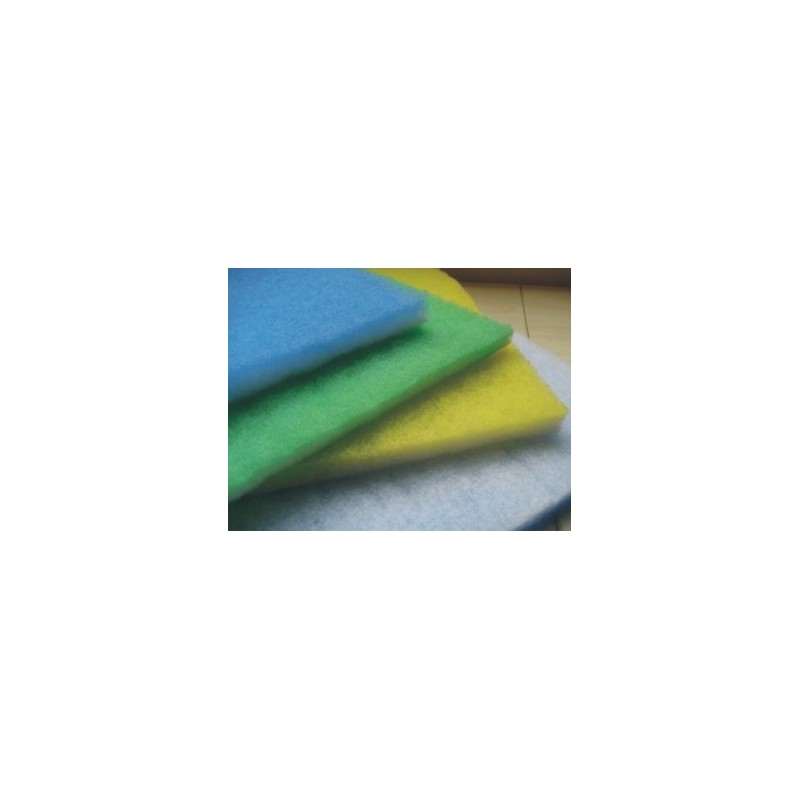

  • Dust-Free & Safe Operation – Built-in filtration system maintains a spotless painting chamber for reliable quality.

  • Durable Construction – Puff-insulated panels, heat-resistant materials, and corrosion-proof finishing for longer lifespan.

  • Improved Workshop Productivity – Reduces polishing needs, rework, and refinishing time while enhancing paint quality.

Technical Highlights

Parameter Specification
Design Type Water-Based, Standard Design
Airflow Volume 30,000 m³/h
Main Blowers 2 Units
Accelerator Blowers 3 Units with 360° Rotating Nozzles
Burner Type Italian Burner
Working Principle Balanced Airflow with High Suction Force
Operating Environment Dust-Free Painting and Baking Chamber
Target Industry Automotive Body Shop / Workshop
Safety Features High Suction Exhaust, Filtered Clean Air Circulation
Energy Efficiency Low Power Consumption, Optimized Heating Efficiency
Typical Application High Gloss Car Painting, Refinishing, and Touch-Ups

Specifications

PARAMETER WATER BASED PBBWF123 PARAMETER WATER BASED PBBWF123
Overall Dimension (m) 7.0*5.3*3.5 Working Temperature ( °C) 60~80
Inner Dimension (m) 6.9*3.9*2.7 Oil Consumption (kg/set) 6~8
Drive Through Door Width (m) 3.0 Insulation material of Wall Panel Rock wool
Drive Through Door Height (m) 2.7 Power (KW) 25
Steel Plate Thickness (mm) 0.426 Main Blower Inlet 11.0 KW Europe Style Professional Blowers & Exhaust 11.0 KW Professional Blower
Filtrated Area (m²) 20 Ventilation Times (times/hr) 332
Air Flow Volume (m³/h) 30000 Air Velocity within booth (m/s) 0.3~0.5
Eco Friendly System Optional Second Row Nether Lighting Equipped with 8 sets



Why Choose DaTo PBBWF123 Paint Booth?

  • Trusted DaTo engineering designed for consistent body shop performance.

  • Provides factory-grade gloss finish without the need for post-polish in most cases.

  • Improves air quality and operator safety through advanced exhaust filtration.

  • Engineered for easy maintenance, low energy use, and long operational life.

  • Ideal for professional painters who value reliability, innovation, and efficiency.
