“The Legendary leader of Automotive Equipments”
Details
TECHNICAL PARAMETER
|
Dimensions (W*D*H) |
400mm*320mm*450mm |
|
Weight |
18kg |
|
Power supply |
85-132Vac/170-264Vac 47-63HZ |
|
Tank capacity |
2.4L |
|
Test tube capacity |
120cc |
|
Ultrasonic frequency |
38-39KHz 100W |
|
Rotate speed |
0~9975r/min, step:25r/min |
|
Pulse width |
0~30ms. Step: 0.1ms |
|
Count |
0-9975, step: 25times |
|
Pressure of fuel system |
0~8bar (can be adjusted) |
|
Test cylinder |
4 or 6cylinder |
FUNCTIONS
- Working modes test
- Injecting volume test
- Leakage test
- Uniformity test
- Sprayability test

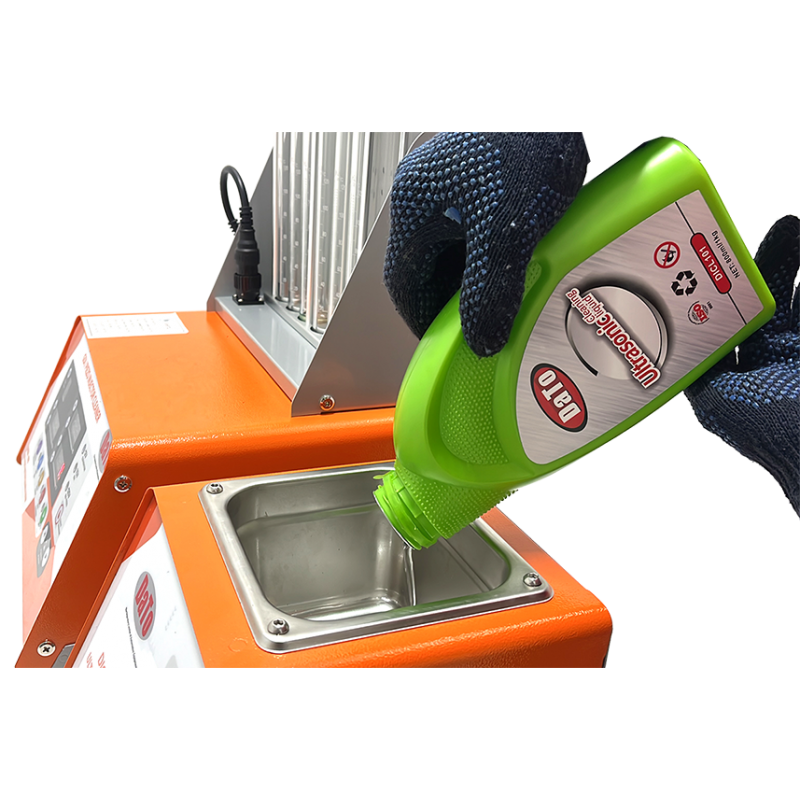

- Ultrasonic cleaning
- Supports full GDI injectors
- Supports Piezo injecotrs
- Full test for low resistance injectors
- Drain the testing liquids by Solenoid, no hand function
