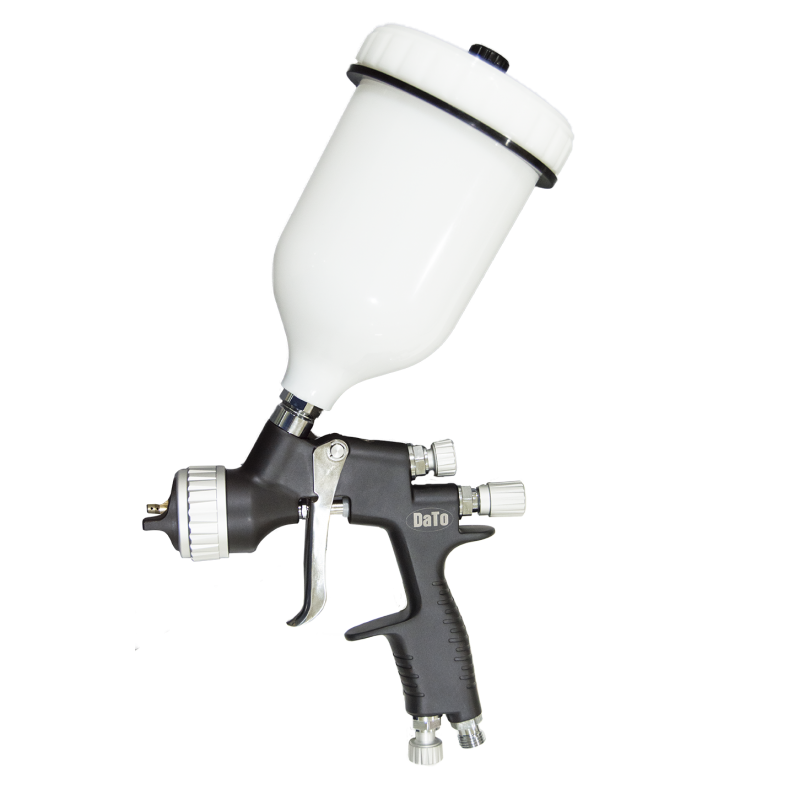

PROFESSIONAL SPRAY GUN PTSMP201AG

Atomization Technology

HVLP

MP

HP

Model

PTSMP201AG

Nozzle Range

1.0-2.5mm

Pattern

(1.3mm)

300-325mm

285-300mm

290-310mm

11.8-12.8in

11.2-11.8in

11.4-12.2in

Recommended

Air Inlet Pressure

1.8bar

2bar

2bar

26psi

26psi

26psi

Air Consumption

465l/min

350l/min

275l/min

16.4cfm

12.4cfm

9.7cfm

Air Inlet

G/NPT 1/4”

Cup

600ml Plastic

Weight (gun only)

492g

Material

Body

Aluminum Die-casted

Air Cup

Special Selected Brass

Nozzle/Fluid Tip

High Grade Stainless Steel

Needle

High Grade Stainless Steel
