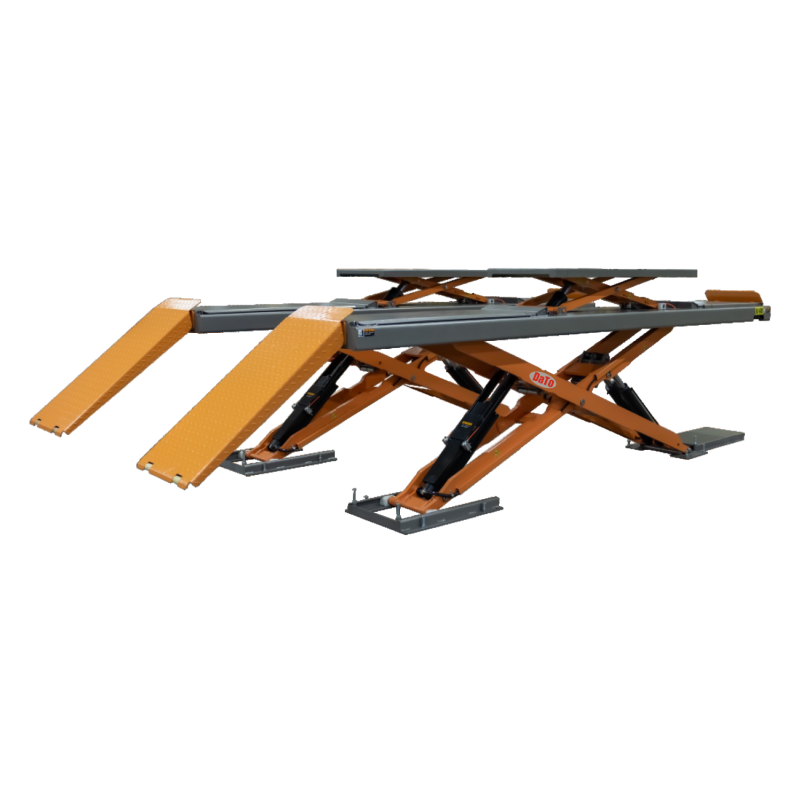

IN-GROUND ALIGNMENT SCISSOR LIFT - LJS8245IE

IN-GROUND ALIGNMENT SCISSOR LIFT - LJS8245IE

Quick Overview

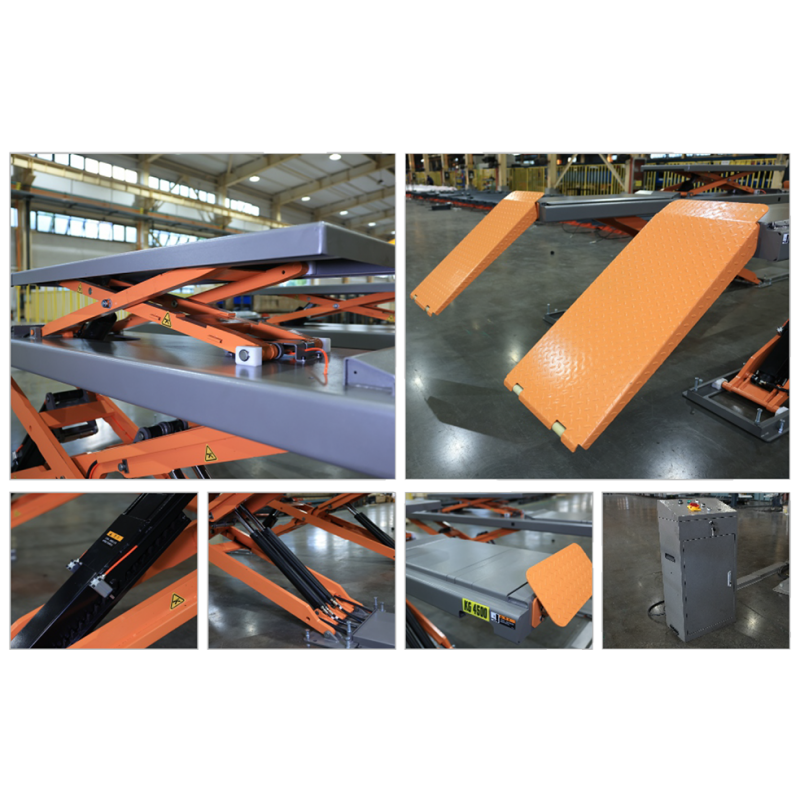

Large plat form scissor lift is the wise choice for the Alignment works in the Service Center, being possible to cater to the requirements of the Side Slip Plates, Turn Tables for the Front wheels and a Center Rolling Jack, the sturdy Scissor Lift provides ample free mobility area between the twin platforms for ease of movement and adjustments. The lift totally sink underground provides facility of clear floor and total space utility when not in use.

  1. In ground installation
  2. Optional choose alignment platform or plain platform (non alignment)
  3. Low voltage control of 24V
  4. With anti-knock valve and safety valve to ensure additional safety
  5. Stable and reliable operation
  6. Perfect synchronization and precise leveling for alignment
  7. Adjustable turntable positions to suit various types of vehicles
  8. Drive-on ramp optional for on-ground installation.

CATALOGUE

Details

SPECIFICATIONS

Technical Parameters

Values

Lifting Capacity

4500/5500 KG

Gross Weight

2235 KG

Lifting Height

163 mm – 1878mm

Platform Length

4330mm

Total Length

5370-5560mm

Platform Width

680mm

Total Width

2260mm

Distance Between Platform

900mm

Power

3.0 kw

Voltage

215-240V/380-415V 50/60Hz

Lifting Time

<50 s

Lowering Time

≥20 s

Noise Level

≤75 dB
