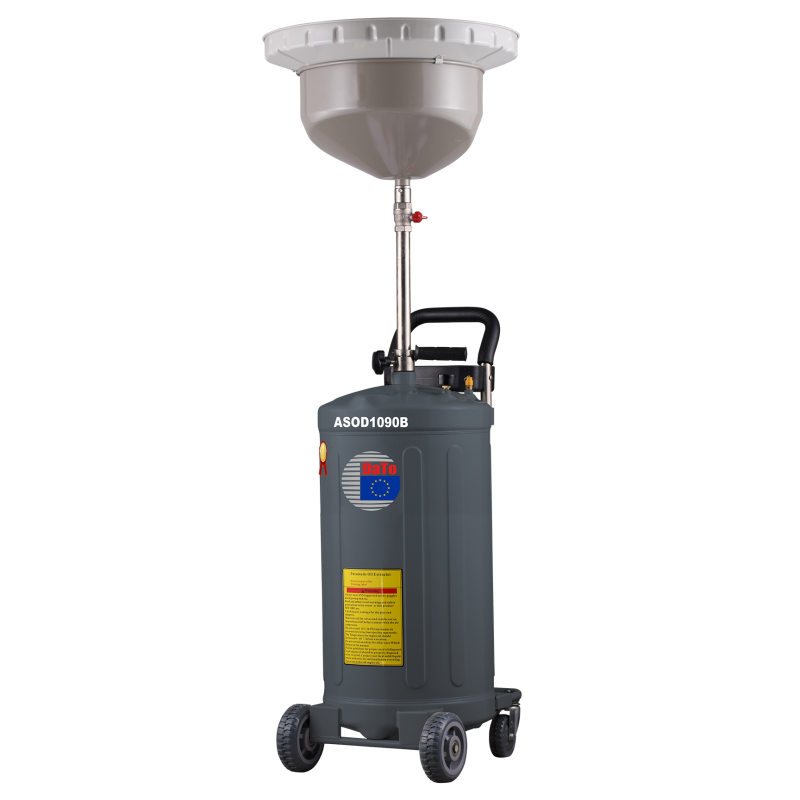

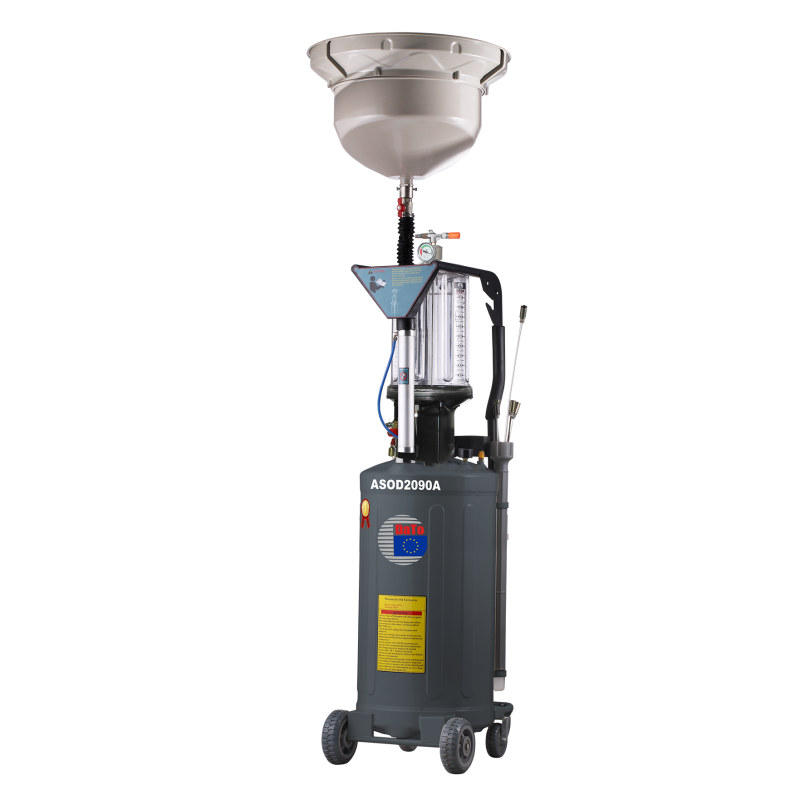

OIL DRAINER SERIES ASOD
Description
DaTo ASOD series is a very handy Oil Extractor/Drainer which removes oil by draining it through a funnel from overhead, or extracting it through a vacuum pump using a suction hose or three flexible plastic/copper probe adapters. The flexible probe adapters make removing the oil from small openings such as the dipstick an easy task, while the long hose and nozzle allow for even quicker extraction. Disposing of the waste oil could not be easier by attaching an air supply to the pressurized tank.
Features:
- Heavy duty 15″ x 5.5″
- Receiver funnel
- Extends from 46″ to 70″
- Two 6″ fixed axle wheels
- Two swivel casters for maximum maneuverability.
- 8″ discharge hose with shut off valve
- Fluid level gauge is on the hose
- Air pressure valve
- Pneumatic Modular cylinder
- (Enhanced density, More reliable material, max. working Temperature 120°C Special structure reduces leakage problem)
- Vacuum generator
- Smart design, 30% higher efficiency than, other brands
- Suction speed
- 39%.73% higher than, other brands
- Anti-explosion Valve
Specification
| Description | ASOD1090B | ASOD2090A | ASOD2090B |
| Theoretical tank capacity | 90Llter/23.8us Gallon | 90Llter/23.8us Gallon | 90Llter/23.8us Gallon |
| Actual tank capacity | 85Liter/22 Gallon | 85Liter/22 Gallon | 85Liter/22 Gallon |
| Air Inlet Pressure | 6-8bar/87-116psi | 6-8bar/87-116psi | 6-8bar/87-116psi |
| Air Inlet connection | 1/4’” | 1/4’” | 1/4’” |
| Vacuum Degree | -1- 0 bar | -1- 0 bar | -1- 0 bar |
| Air Pressure for Oil Discharge | 0.7-1bar/10-15psi | 0.7-1bar/10-15psi | 0.7-1bar/10-15psi |
| Oil Temperature Range | 40-60°c | 40-60°c | 40-60°c |
| Suction speed probe dia.08&Oil 60°C(max) | 6.5Liter/m/US
1.72Gallon/m |
6.5Liter/m/US
1.72Gallon/m |
6.5Liter/m/US
1.72Gallon/m |
| Modular Winder Capacity | 6.5Liter/m/US
1.72Gallon/m |
11/12liter(2.9/3.2 Gallon) | 11/12liter(2.9/3.2 Gallon) |
| NW. /Gw. | 29/33kgs | 36/44kgs | 47/53kgs |
