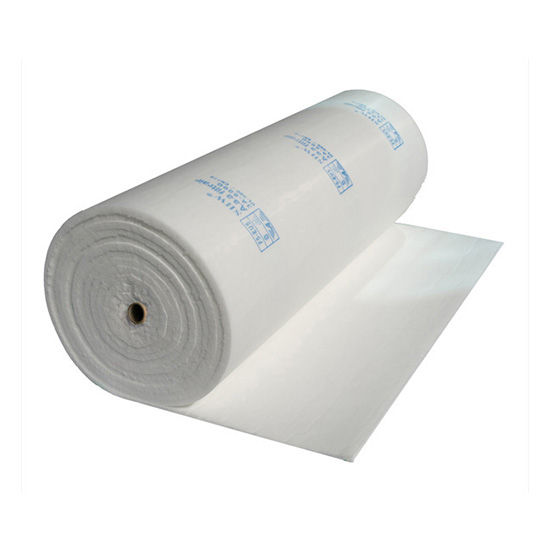

ROOF FILTER – ASPBR122
Description
DaTo Roof Filters are made from the anti-break organic synthesis fiber in high-powered high melt way, gradual structure using the technology which encrypts gradually the multi-layered fiber to increase the density gradually toward pure air. High filter efficiency prevents the dust according to the dust size in the different density level. It restricts much of the dust more effectively.
Specifications
| Parameter | ASPBR122 |
| Material | Polyester |
| efficiency | 35% |
| Avg. arrestance | 98% |
| Air velocity | 0.25m/S |
| Rated air flow | 900m³/h |
| Initial resistance | 35Pa |
| Final resistance | 430Pa |
| Dust holding at tested final | 400 g/㎡ |
| Filtration class | F5 |
| Resistance humidity | 100% |
| Temp. resistance | 120℃ |
| Temp. short peaks | 140℃ |
| Normal thickness | 22mm |
MPN: 003740
