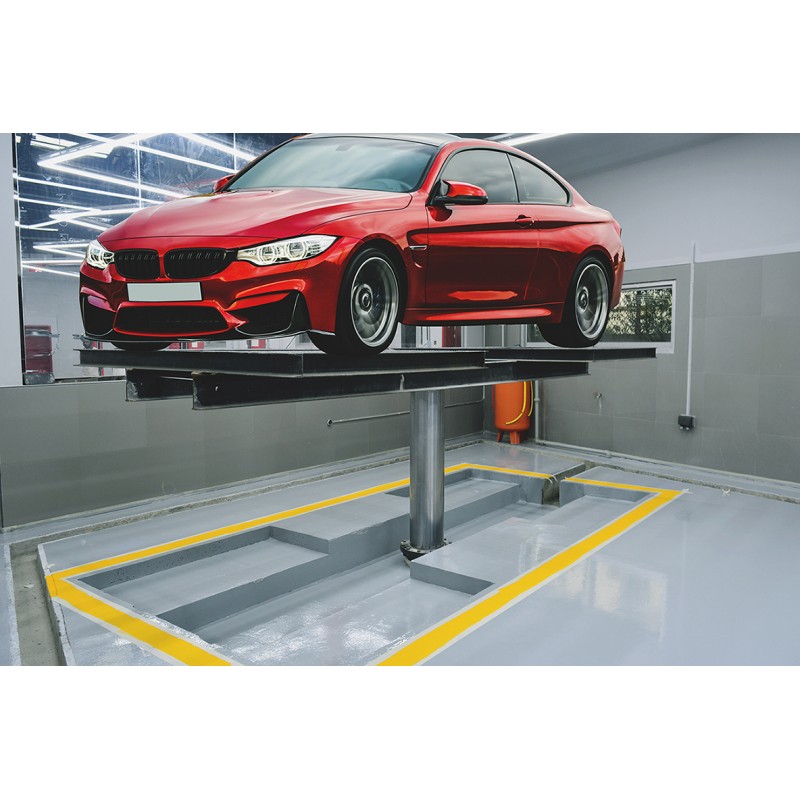

CAR WASH LIFT 4T – CWLHM104
Features
- Plungers are of high grade steel manufactured to close tolerance with hard chrome plating for high wear resistance and good finish.
- Outer cylinder coated with Fiber Reinforced Plastic (FRP) protecting it against corrosion (optional).
- Uniquely designed wiper rings prevent entry of water and dirt particles into the Hoist cylinder while raising, servicing and lowering.
- Gland rings used in the plungers are designed for enhanced performance.
- Heavy duty rigid ramps accommodate a wide range of vehicles of varying size and type.
Optional Features available in semi-hydraulic hoists
- Drive-on ramp with stoppers to prevent movement or over turning.
- Non-rotator/Safety lock leg.
- Arm attachment.
CWLHM104 Hydraulic Car Wash Lift is a flagship product of DaTo, embodying years of production experience, the optimal engineering and quality control in lifting technology makes it the excellent Hydraulic Lift with reliability and efficiency. The Single Cylinder, Fiber Coated & Rust Proofed structure adds to the durability.
Specification
| Parameters | CWLHM104 | |
| Capacity | tons | 4 |
| No. of posts | no | 1 |
| Plunger diameter | mm | 270 |
| Operating pressure | kg/cm2 | 9 to 12 |
| Lifting height | mm | 1500 |
| Front | mm | 4500 |
| Ramp Width | mm | 700 |
| Oil fill capacity | ltrs | 150 |
DaTo Car Wash Lifts have become quintessential equipment in Garages. DaTo is the best Quality Car-Lifts / Car-Wash-Lifts, Hydraulic-Lifts Suppliers in UAE, GCC, We target and distribute our comprehensive range of products all over the UAE and aim to become the best Supplier in the Arab market.
