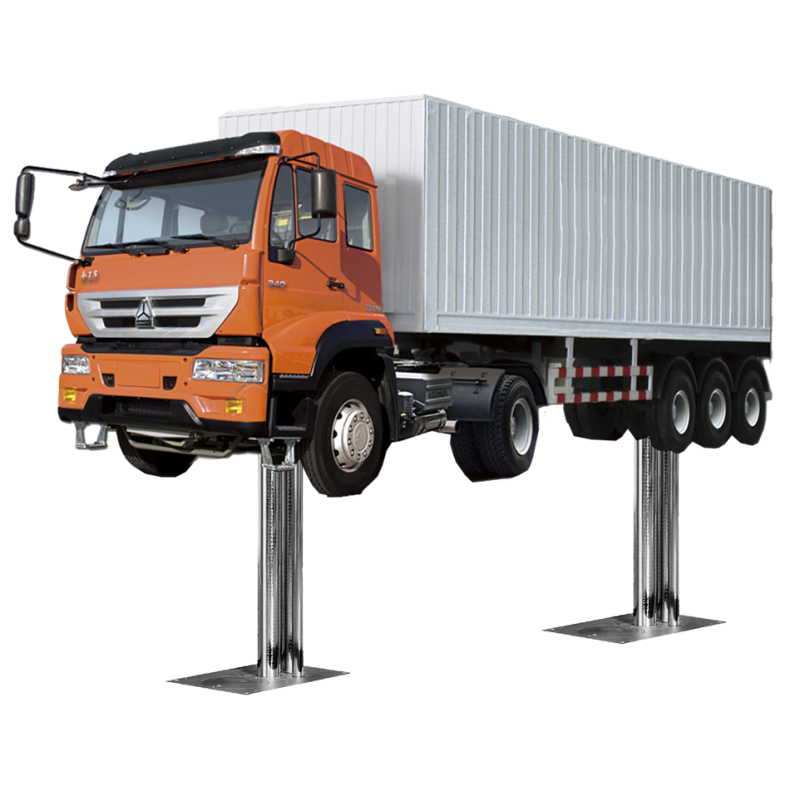

CAR WASH LIFT SERIES – CWLHMA08
Car Wash Lift Features
- Plungers are of high grade steel manufactured to close tolerance with hard chrome plating for high wear resistance and good finish.
- Outer cylinder coated with Fiber Reinforced Plastic (FRP) protecting it against corrosion (optional).
- Uniquely designed wiper rings prevent entry of water and dirt particles into the Hoist cylinder while raising, servicing and lowering.
- Gland rings used in the plungers are designed for enhanced performance.
- Heavy duty rigid ramps accommodate a wide range of vehicles of varying size and type.
Optional Features available in semi-hydraulic hoists
- Drive-on ramp with stoppers to prevent movement or over turning.
- Non-rotator/Safety lock leg.

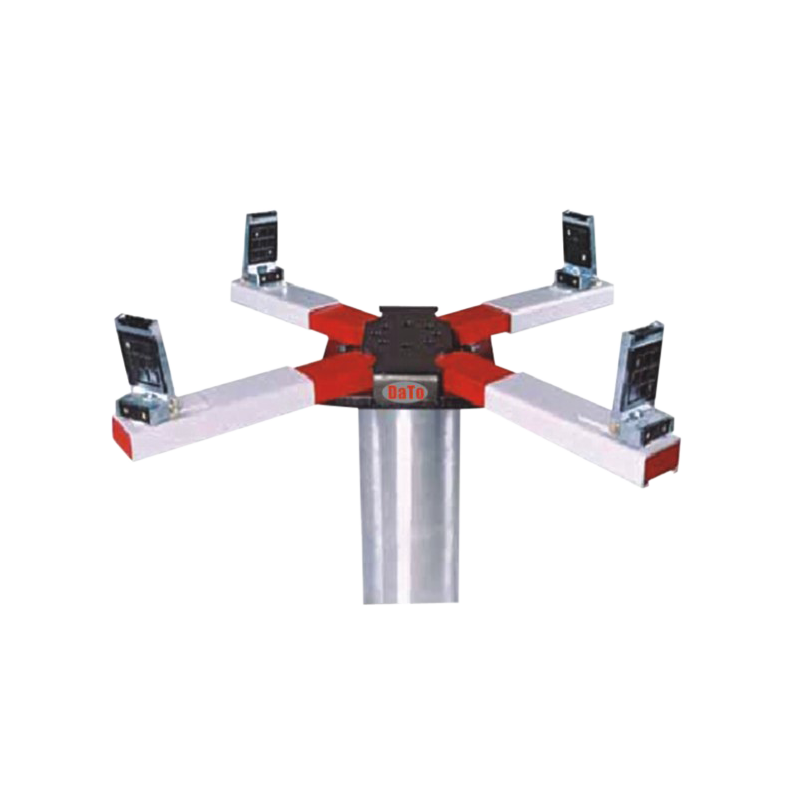

- Arm attachment.
Description
DaTo in-ground Hydraulic Hoists are designed to offer maximum reliability and flexibility. The car wash lift are designed to lift safely and efficiently all types of passenger cars and commercial vehicles for carrying out the tasks of washing, lubrication, maintenance and repairs.
Specification
|
Specifications |
Fully Hydraulic |
Semi Hydraulic |
|||||
| CWLHM104 | CWLHM108 | CWLHM108 | CWLHM116 | CWLHM204 | CWLHM208 | ||
| Capacity | tons | 4 | 8 | 8 | 16 | 4 | 8 |
| No. of posts | 1 | 1 | 2 | 2 | 1 | 1 | |
| Plunger diameter | mm | 270 | 320 | 270 | 320 | 270 | 320 |
| Operating pressure | kg/cm2 | 9 to 12 | 9 to 12 | 9 to 12 | 12 to 16 | 9 to 12 | 9 to 12 |
| Lifting height | mm | 1500 | 1525 | 1500 | 1525 | 1500 | 1525 |
| Ramp length | |||||||
| – Front | mm | 4500 | 5800 | 4500 | 5800 | 4500 | 5800 |
| – Rear | mm | – | – | 1500 | 1500 | – | – |
| Ramp Width | mm | 700 | 820 | 700 | 820 | 700 | 820 |
| Oil fill capacity | ltrs | 150 | 175 | 300 | 350 | 160 | 260 |
