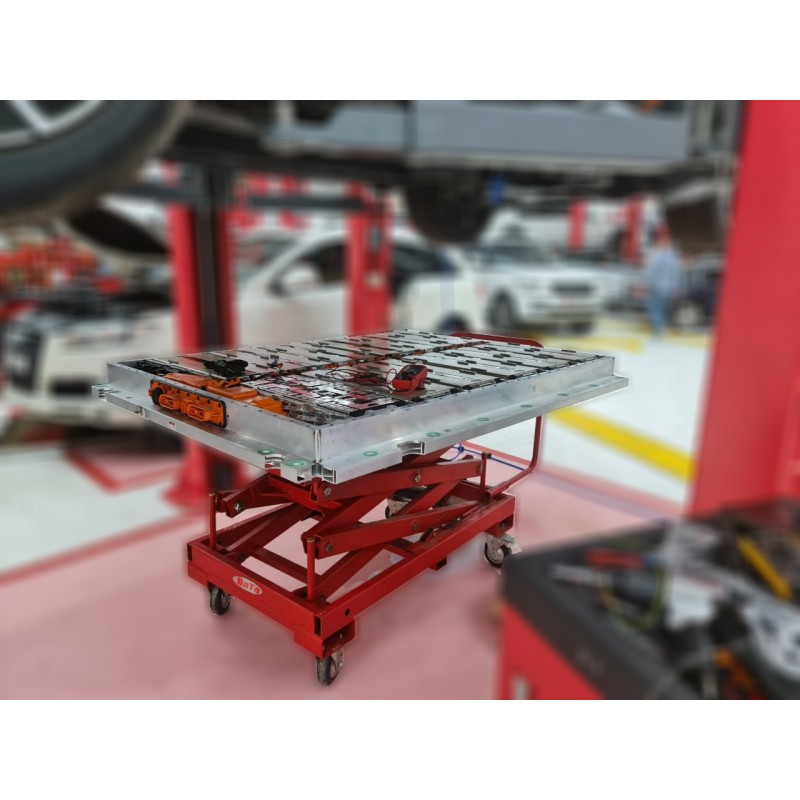

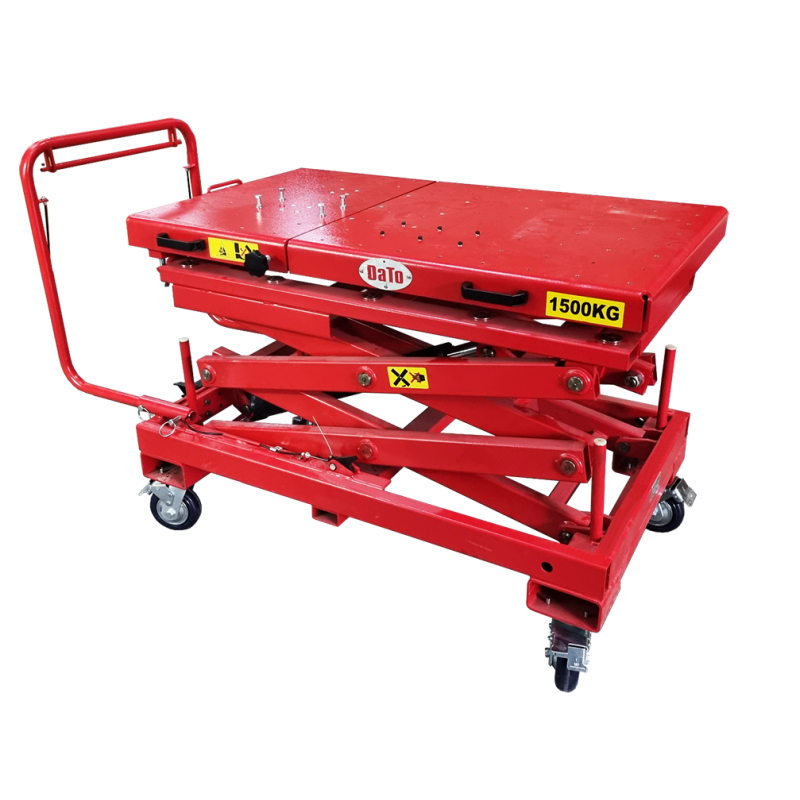

BATTERY PNEUMATIC LIFT
Description
DaTo BATTERY PNEUMATIC LIFT – LJS4015 is designed with high quality steel, sand Blasted – heat treated and powder coated robust structure to deliver the best durability and Reliable service to our valuable customers It is an Ideal for lifting battery
Specifications
| Parameters | LJS 4015 |
| Drive Method | Pneumatic Hydraulic |
| Lifting capacity | 1.5 Ton |
| Host lift height | 2000 mm |
| Platform Initial height | 710 mm |
| Platfrom Length | 1360 – 1525 mm |
| Overall Length | 1820 mm |
| Total Weight | 441.5 Kg |
| Air Pressure Req | 0.7 – 1.0 Mpa |
| Output Pressure | 0 – 30 Mpa |
