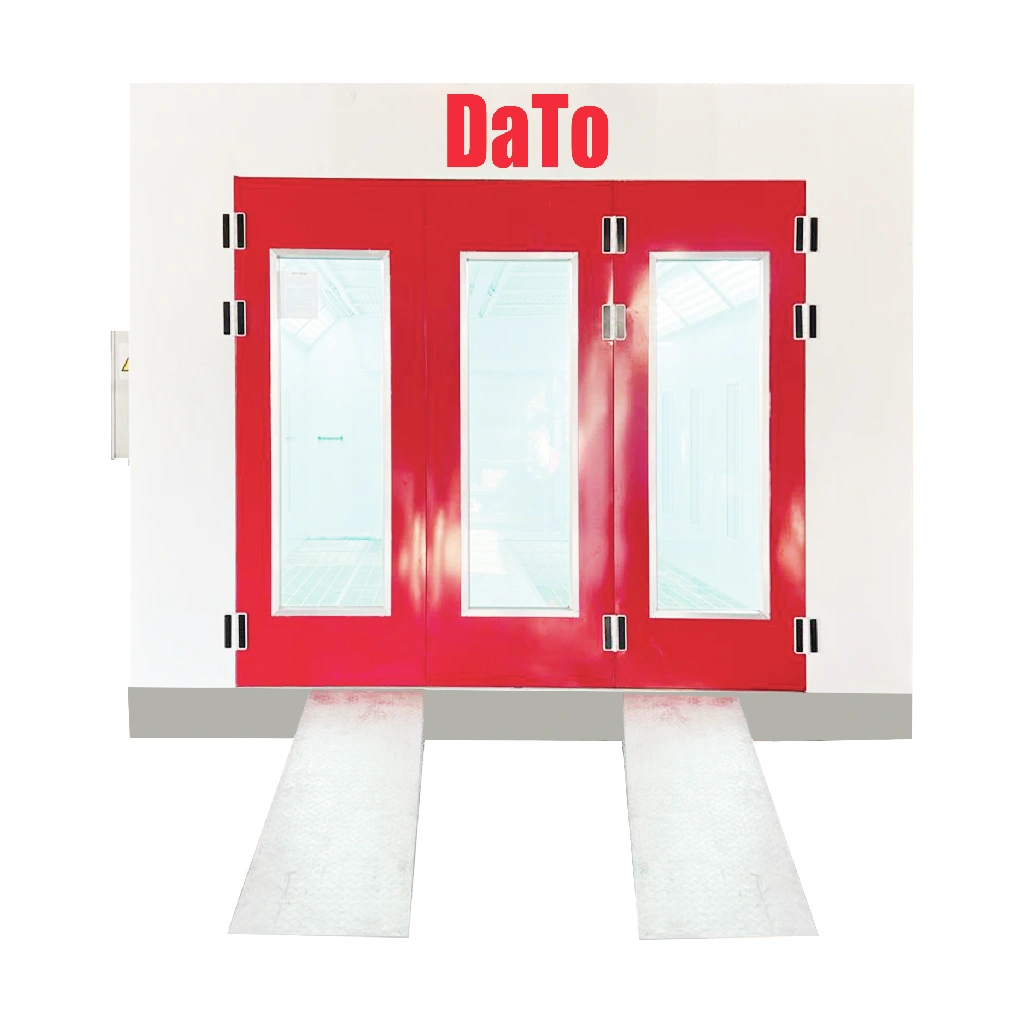

DaTo PBBSF222 Advanced Spray Paint Booth
The DaTo PBBSF222 Spray paint Booth represents a new generation of DaTo spray technology, bringing exceptional efficiency, thermal control, and clean airflow for premium painting results. With a powerful 7.5 kW turbine fan system delivering 25,000 m³/h air supply, the PBBSF‑222 ensures uniform airflow and consistent surface finish across all vehicle types.
DaTo PBBSF222 Spray Paint Booth Built with industrial‑grade galvanized steel panels, rock wool insulation, and a positive pressure air cabinet, this unit maintains dust‑free internal conditions while guaranteeing operator safety through a pressure‑relief door system equipped with a tempered glass viewing window. The air filtration setup — including G3 primary intake filters and F5 ceiling filters — ensures high purity inflow and regulated exhaust performance for cleaner, smoother painting outcomes.
Key Features & Capabilities
-
High Airflow Supply System – Delivers 25,000 m³/h through a series turbine fan, ensuring smooth, even airflow within the cabin.
-

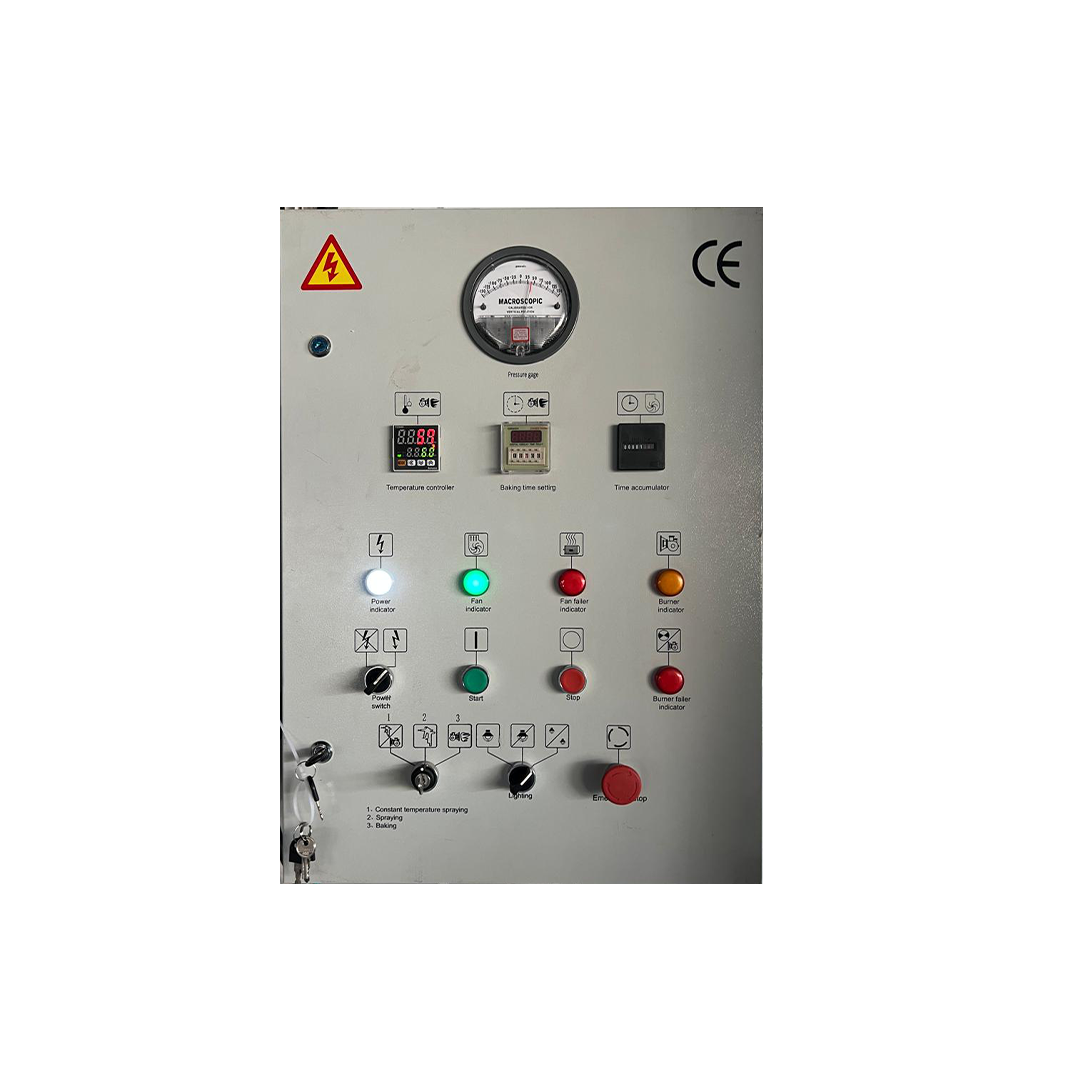

Integrated Heating & Temperature Control – Fast temperature rise (up to 20 °C within minutes) and maximum baking temperature of 80 °C for superior paint curing.
-
Durable Structural Build – Heavy‑duty galvanized steel cabinet with internal rock wool insulation and spray‑painted finish for long‑term reliability.
-

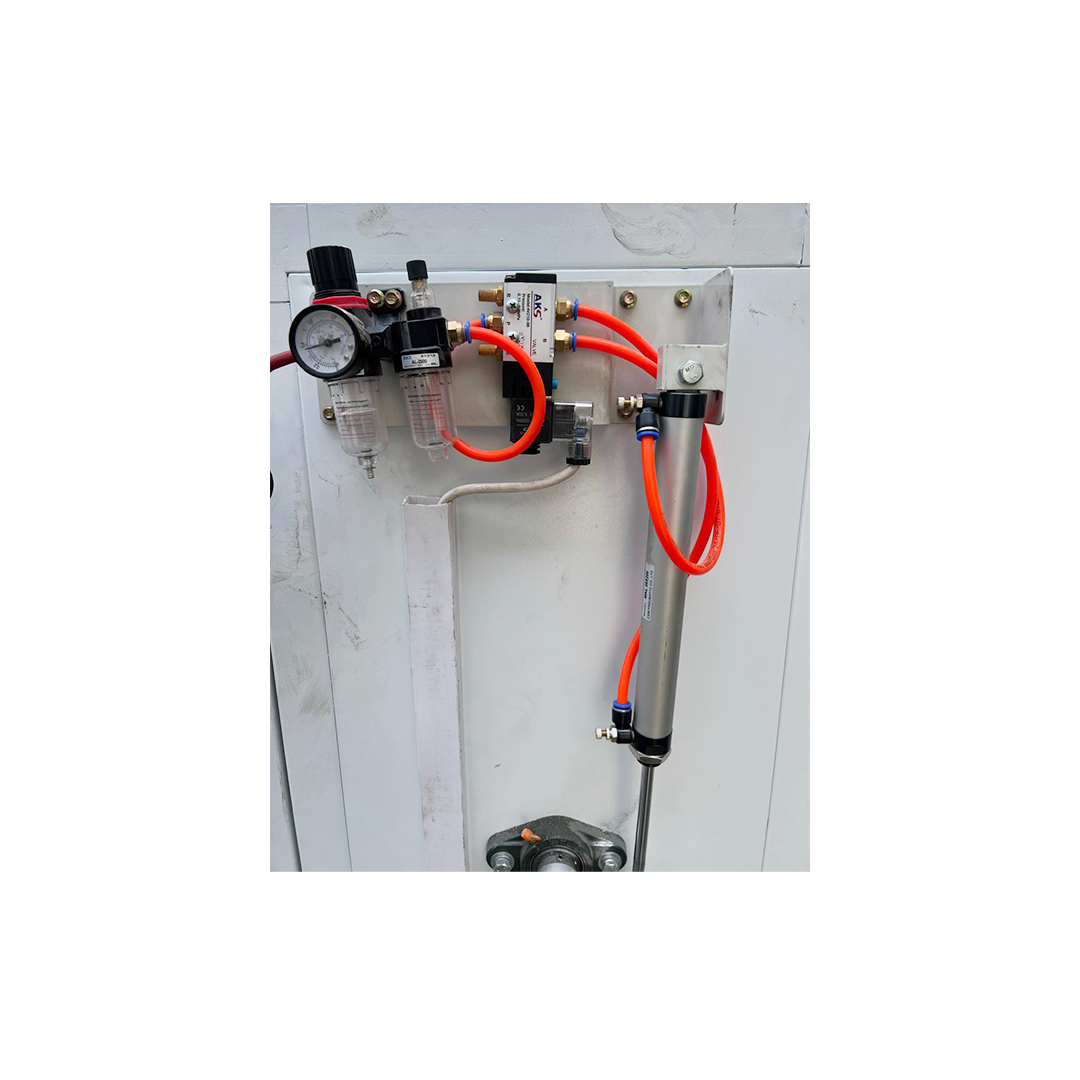

Pressure‑Relief Safety Door – Aluminum‑alloy door frame with tempered glass window and pressure lock device for operator safety.
-

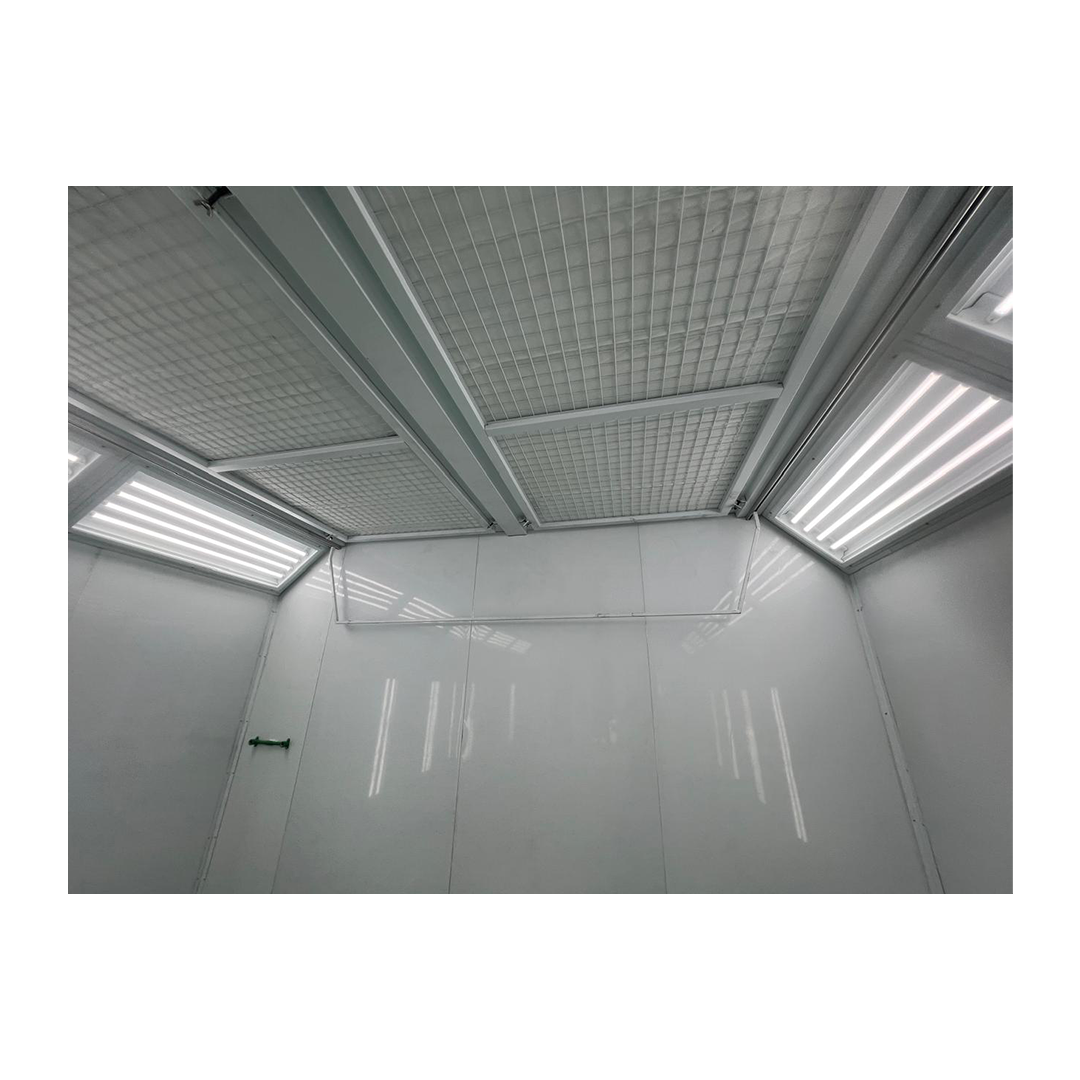

Efficient Filtration System – Equipped with G3 primary filters, F5 ceiling filter cotton, and glass fiber floor filters for pure air and fume‑free working conditions.
-
Energy‑Efficient Motor & Fan – 7.5 kW direct‑drive turbine fan minimizes power loss while keeping noise below 85 dB.
-
Precision Engineering – Includes manually adjustable air dampers for optimal intake control, maintaining correct pressure balance.
-
Optimal Air Velocity – No‑load wind speed of ≥ 0.25 m/s ensures consistent spray particle distribution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PBBSF-222 |
| Design Type | Standard Automotive Spray Booth |
| Inner Dimensions (L×W×H) | 6900 × 4000 × 2650 mm |
| Outer Dimensions (L×W×H) | 7006 × 5506 × 3400 mm |
| Air Flow Volume | 25,000 m³/h |
| Fan Type | Series Turbine Fan, Model 710 |
| Fan Power | 7.5 kW (Motor Direct Drive) |
| Total Rated Power | 16.5 kW |
| Total Pressure | 560 Pa |
| Air Noise Level | ≤ 85 dB |
| Filtration | G3 Primary Intake + F5 Ceiling + Glass Fiber Floor Filters |
| Voltage | 380 V / 50 Hz / 3 Phase |
| Maximum Temperature | 80 °C |
| Temperature Rise Rate | +20 °C during spray baking |
| No‑Load Wind Speed | ≥ 0.25 m/s |
| Safety Door Structure | Aluminum Alloy Frame with Tempered Glass Observation Window |
| Door Leaf Size | 800 × 2000 mm |
| Observation Window Size | 1000 × 400 × 5 mm |
| Air Inlet System | Adjustable Damper for Manual Control |
| Construction Materials | Galvanized Steel Panels with Rock Wool Insulation |
Why Choose DaTo PBBSF‑222 Spray Booth?
-
Combines high airflow and precision heating for optimal coating quality.
-
Maintains dust‑free and energy‑efficient operation for modern body shops.
-
Innovative safety door design ensures controlled internal pressure and durability.
-
Ensures uniform paint atomization across all surfaces through balanced air velocity.
-
Supported by DaTo’s proven reliability and industry experience in paint booth manufacturing.
