DaTo Super Scanner DAS701+ | Advanced Android based 3 in 1 Super scanner
- Support the full-system and full-function testing of more than 100 car brands in Europe, America, Asia and China.
- It can test the health of all passenger car lead-acid batteries.
- Support all 315MHz/433MHz tire pressure sensor activation, matching and learning, and read tire pressure data.
- Support 26 common maintenance functions, support CAN FDDoIP and other detection protocols.
What Can Be Solved
in Your Workshop
The DaTo Super Scanner DAS701+ is not only a tire pressure sensor tester but also a multifunctional tool that integrates battery testing and car diagnosis. Regarding car diagnostics, it provides a more comprehensive solution for repair shops.
Functions
| Functions | Description | √ |
| Battery Detection |
Supports two methods of in-vehicle detection and out-of-vehicle detection, supports battery health test,
start-up test, charging test, battery barcode scanning, and battery matching
|
√ |
| Tire Pressure Detection |
Support 315MHz/433MHz tire pressure sensor activation and learning, support reading tire pressure, tire
temperature, battery status and other information, and can read, copy, and write sensor ID values
|
√ |
| Vehicle Detection |
Support for code reading, code clearing, data stream reading, action testing, special functions and other full-system
and full-function detections
|
√ |
|
Maintenance Function
|
Support 26 common maintenance functions, such as maintenance light reset, throttle matching, brake
pad replacement, steering angle reset, anti-theft matching, ABS bleeding injector coding, DPF regeneration, sunroof initialization,
Gearbox matching, etc
|
√ |
|

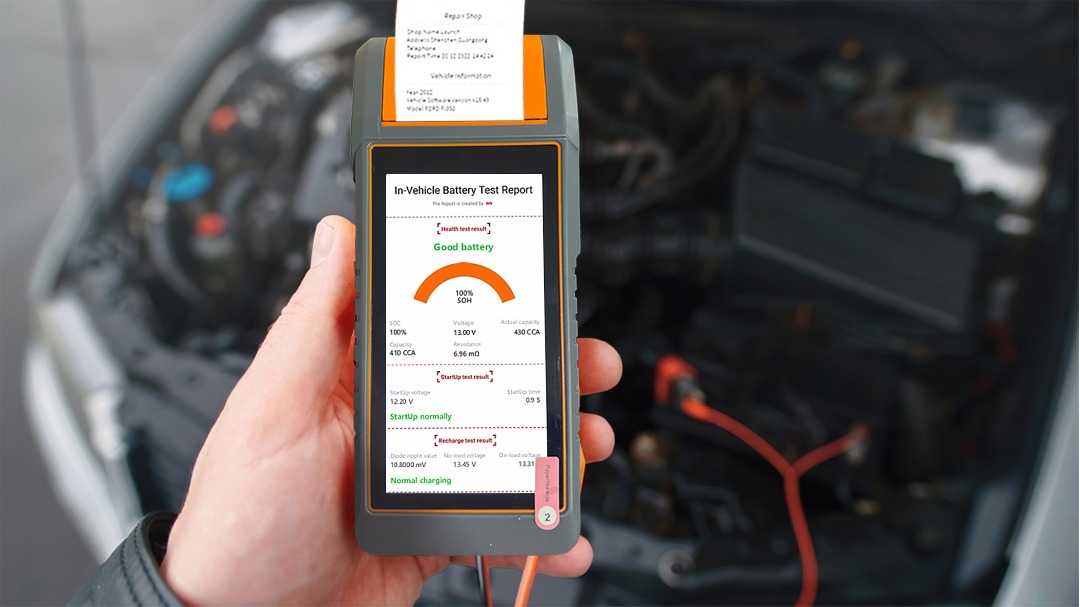

Test Report
|
Support the display of battery tests, tire pressure monitoring, fault detection, data flow and other reports
|
√ |
|
Software Upgrade
|
Support online upgrades, including model software, firmware software, and APP software
|
√ |
|
Module Expansion
|
Support the expansion of videoscope functions
|
√ |
|
Report Printing
|
Support printing reports through the built-in thermal printer
|
√ |
Parameters
| CPU | 4 Core 2.0GHz | Camera | 8MP |
| System | Android | Wi-Fi | 2.4GHz/5GHz |
| Memory | 4GB | Interface | DB15 diagnostic connection |
| Storage | 64GB | Battery clip connector | |
| Display Size | 5.99 inch | USB Type A, USB Type C | |
| Resolution | 720 X1440 | Working Temperature | 0~45°C |
| Battery Capacity | 4500mAh/7.6V | Storage Temperature | -10~60°C |
