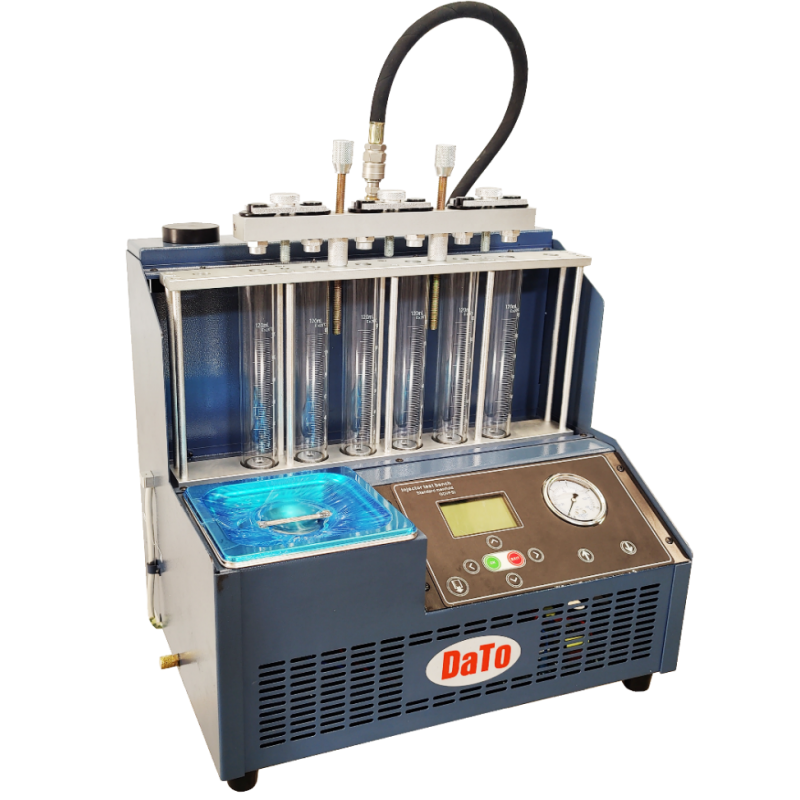

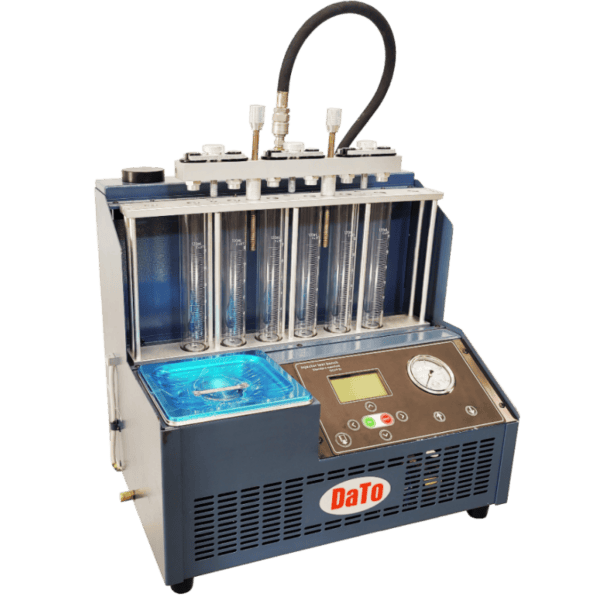

DIGD 601 – INJECTOR CLEANER & GDI TESTER
Description

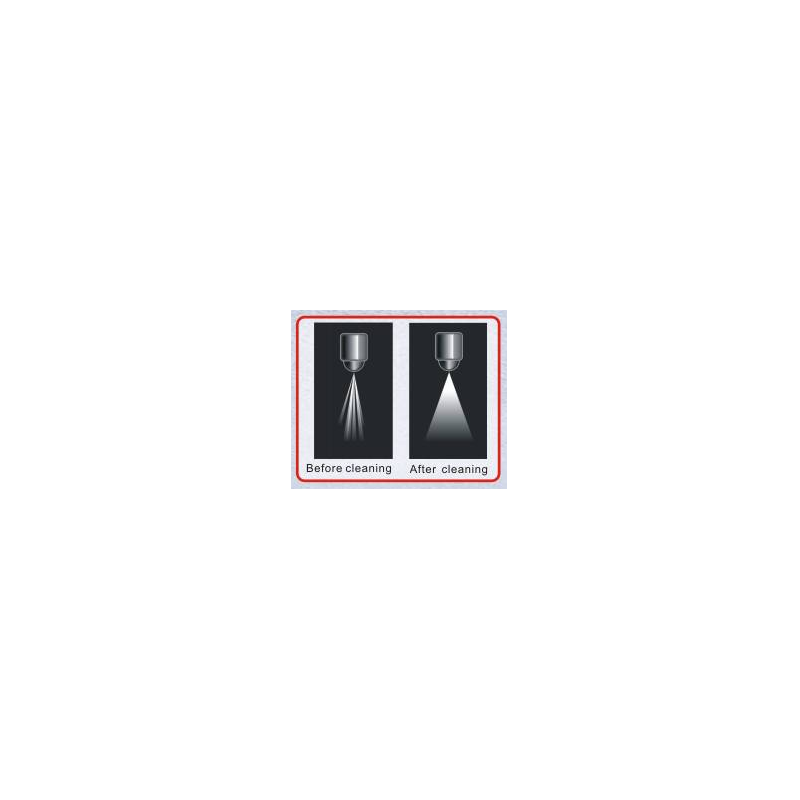

Injectors on vehicles are recommended to be cleaned and assure proper Injection of the fuel for a better homogenous mixture of the fuel and air.
DaTo Injector cleaner comes along with Ultrasonic Cleaning tanks for better cleaning Efficiency and the bench assures perfect testing of the GDI / FSI Injectors and standard Manifolds Injectors
Features
- Ergonomic design and user friendly interface
- Functions: Uniformity / spray test, Leakage test, Fuel flow test, Auto cleaning test, Inductance, Ultrasonic cleaning.
- 19 Modes of uniformity test for GDI Injector, varying in pulse width, Rotation speed and Duty Ratio.
- On Vehicle cleaning Optional ( need to purchase Optional on vehicle cleaning kit)
Specifications: |
||
| 1 | Input power | AC220V±10%~50/60Hz |
| 2 | Output power | 250W |
| 3 | Injectors Serviced | GDI / FSI / Standard |
| 4 | Ultrasonic cleaner Output | 50W |
| 5 | Test fluid tank capacity | 4200 ml |
| 6 | Pressure Range | 0 – 10 bar |
| 7 | Dimension | 670 * 600 * 470mm (Pack)
510 * 355 * 450 mm (Unpacked) |
