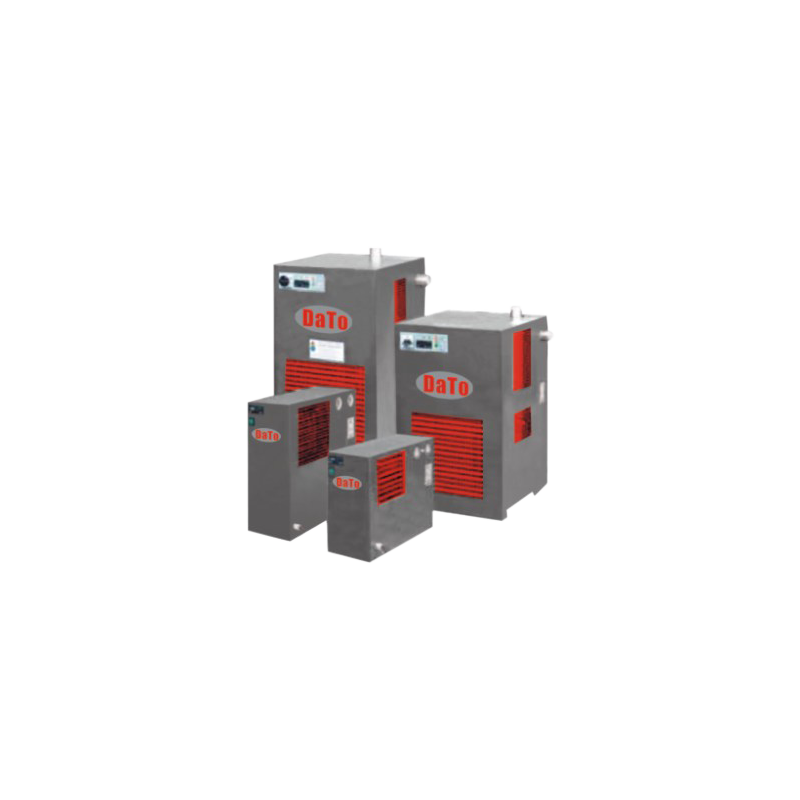

Air Compressor Drier – AMD-LH
Description
AMD-LH Air Compressor Drier achieve excellent performance even in instances of high ambient and high inlet temperatures. The highly efficient and ultra compact heat exchanger is able to operate effectively in ambient temperatures up to 45°C and inlet temperatures of 55°C, ensuring a reduced compressed air pressure drop.
ECONOMIC
AMD-LH Air Compressor Drier is sized to match standard compressor outputs. E. g. a 15 kW (20 HP) air compressor with theoretical output of 2400 l/min at 7 bar matches the AMD-LH 25 rated 2500 l/min. It is therefore unnecessary to select a large model: air compressor – dryer combination is tested and certified by LA PADANA, within operating limits shown on technical features.
Specifications
|
Model |
Compressor |
Flow-Rate l/min |
Press. Bar |
Connector |
|
CSDL0405 |
4/5,5 |
585 |
0.04 |
1/2” |
|
CSDL0910 |
5,5/7,5 |
1000 |
0.09 |
1/2” |
|
CSDL1412 |
7,5/10 |
1200 |
0.14 |
1/2” |
|
CSDL3218 |
11/15 |
1800 |
0.32 |
1” |
|
CSDL2488 |
18,5/25 |
2500 |
0.24 |
1” |
|
CSDL1618+ |
22/30 |
3000 |
0.16 |
1” |
|
CSDA1961 |
30kW-40HP |
6100 |
0.19 |
G1.1/2” |
|
CSDA2575 |
37kW-50HP |
7500 |
0.25 |
G1.1/2” |
|
CSDA1410+ |
55kW-75HP |
10500 |
0.14 |
G2” |
|
CSDA0213+ |
55Kw-75HP |
13000 |
0.2 |
G2” |
|
CSDA1516+ |
90kW-120HP |
16800 |
0.15 |
G2.1/2” |
