INVERTER PLASMA CUTTING MACHINE – WEPNA40
Description

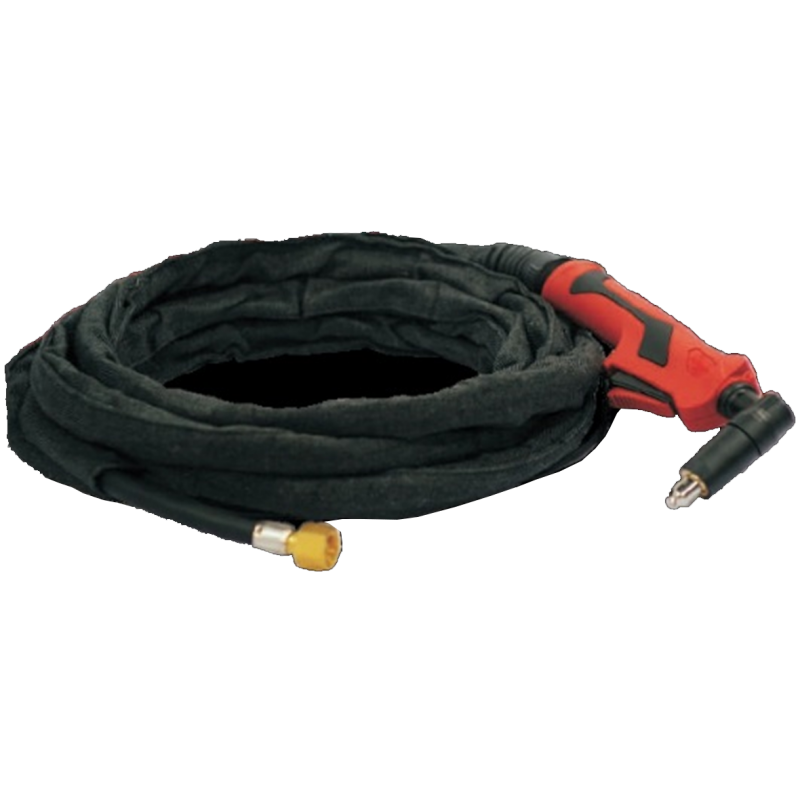

DaTo WEPNA040 plasma cutting machine has a cutting capacity increased 2 times in cutting speed compose with oxy-cutting. It is suitable metal sheet can be easily and quickly, suitable for cutting stainless steel, copper, iron and aluminum etc. Simple operation and smooth cutting surfaces. It is non-touch arc-starting, less damage to the torch tips, simple design helps the machine to compile with EMC standards, supplied complete with plasma cutting torch and earth clamp, face mask welding brush, carton box
Features
- IGBT inverter technology.
- Compact size and light weight.
- High efficiency and energy saving technology.
- Highly durable body with reinforced ABS plastic to give a sturdy build and to help in the harsh working environments and that makes it corrosion resistant.
- Cutting speed is faster than oxy-fuel cutting by 1.8 times.
- Thick metal plates can be cut easily and economically.
- Suitable for cutting stainless steel, copper, carbon steel, Aluminum, etc.
- Simple operation and smooth cutting surface.
- HF arc starting with contact
Specification |
|
| Input Voltage (± 10) | 220V,50/60Hz,1P |
| Rated Input Power | 4.8KVA |
| No Load Voltage | 230V |
| Output Current Range | 10-40A |
| Rated Output Voltage | 96V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93COSØ |
| Insulation Grade | B |
| Protection Grade | IP23 |
| Arc Starting | Contact |
| No- Load Loss | 40W |
| Max cutting Thickness | 12 mm |
| Overall Dimension | 376x172x304mm |
| Weight | 7.8Kg |
