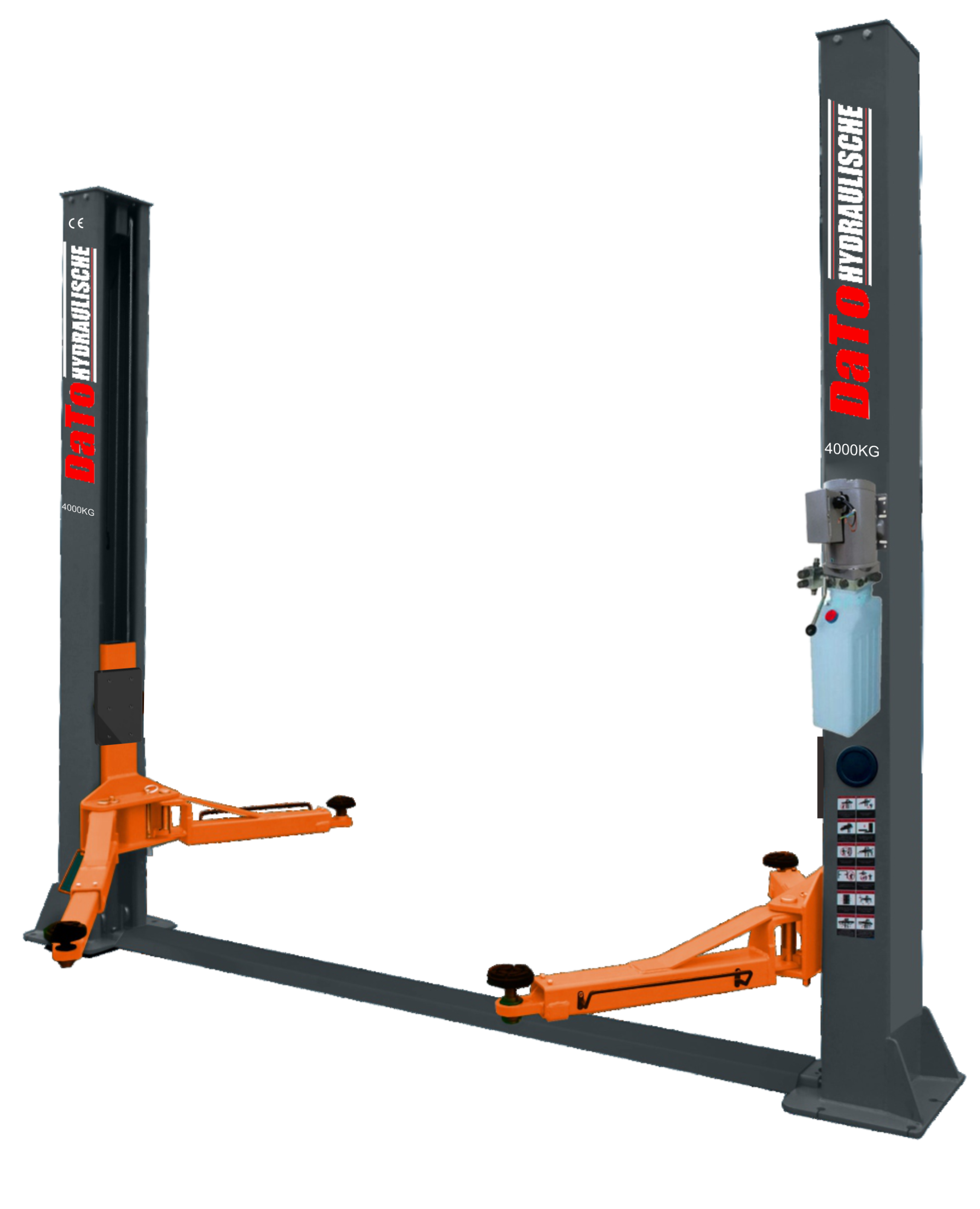

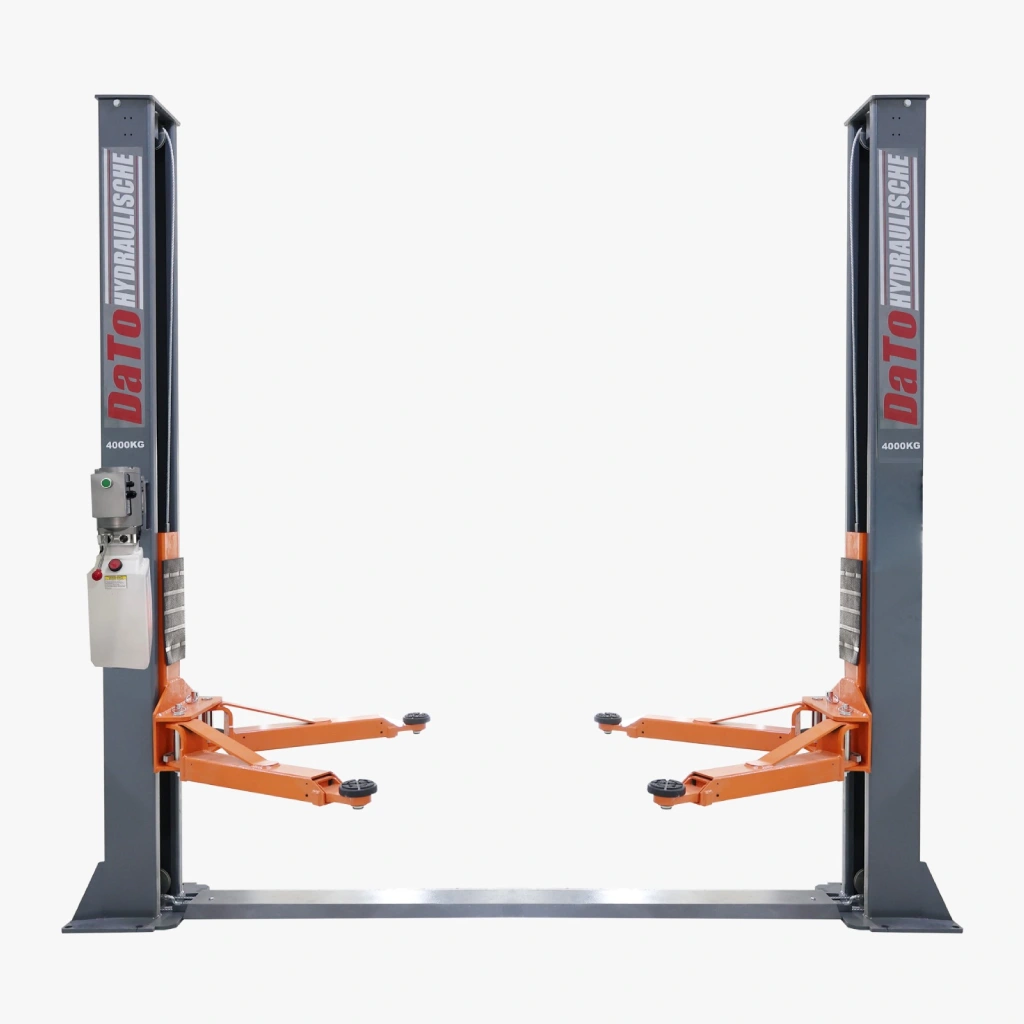

LJCB2140U Base Plate Two Post Car Lift – 4 Ton Manual Lock Hoist

The DaTo LJCB2140U Two Post Lift is a base plate (floor plate) automotive lifting solution, specifically designed for low-ceiling garages where clear floor lifts cannot be installed.

This model features a dual-side manual lock release system, ensuring secure vehicle holding during lifting and servicing operations. The high-limit switch prevents over-travel of the lifting carriage, while the automatic all-steel arm-locking device provides stable and safe arm positioning during operation.

Safety is further enhanced with vehicle door protection pads, a foot protection device, chain protection covers, and a hydraulic safety valve designed to prevent sudden pressure loss or hydraulic system failure.

Powered by a 2.2 kW electro-hydraulic drive, the LJCB2140U supports vehicles up to 4.0 tons, offering a maximum lifting height of 1930 mm and a minimum height of 100 mm, making it suitable for both standard and low-profile vehicles.

Key Features & Safety Systems

• 4.0 Ton Lifting Capacity
  Suitable for passenger cars, SUVs, and light commercial vehicles

• Base Plate Two Post Design
  Ideal for workshops with low roof height

• Dual Manual Lock Release System
  Secure mechanical locking on both columns

• High Limit Switch Protection
  Prevents over-lifting and mechanical damage

• Automatic All-Steel Arm Locking Device
  Ensures stable arm positioning during lifting

• Two-Stage Lifting Arms
  Flexible vehicle positioning and secure lifting support

• Vehicle Door Protection Pads
  Prevents damage during door opening

• Foot Protection Device
  Enhanced operator safety

• Hydraulic Anti-Explosion Safety Valve
  Protects against sudden hydraulic pressure failure

• Chain Protection System
  Improves durability and operational safety

Ideal Applications

• Low-ceiling automotive workshops

• Car repair and maintenance garages

• Tire and suspension service bays

• General automotive service centers
