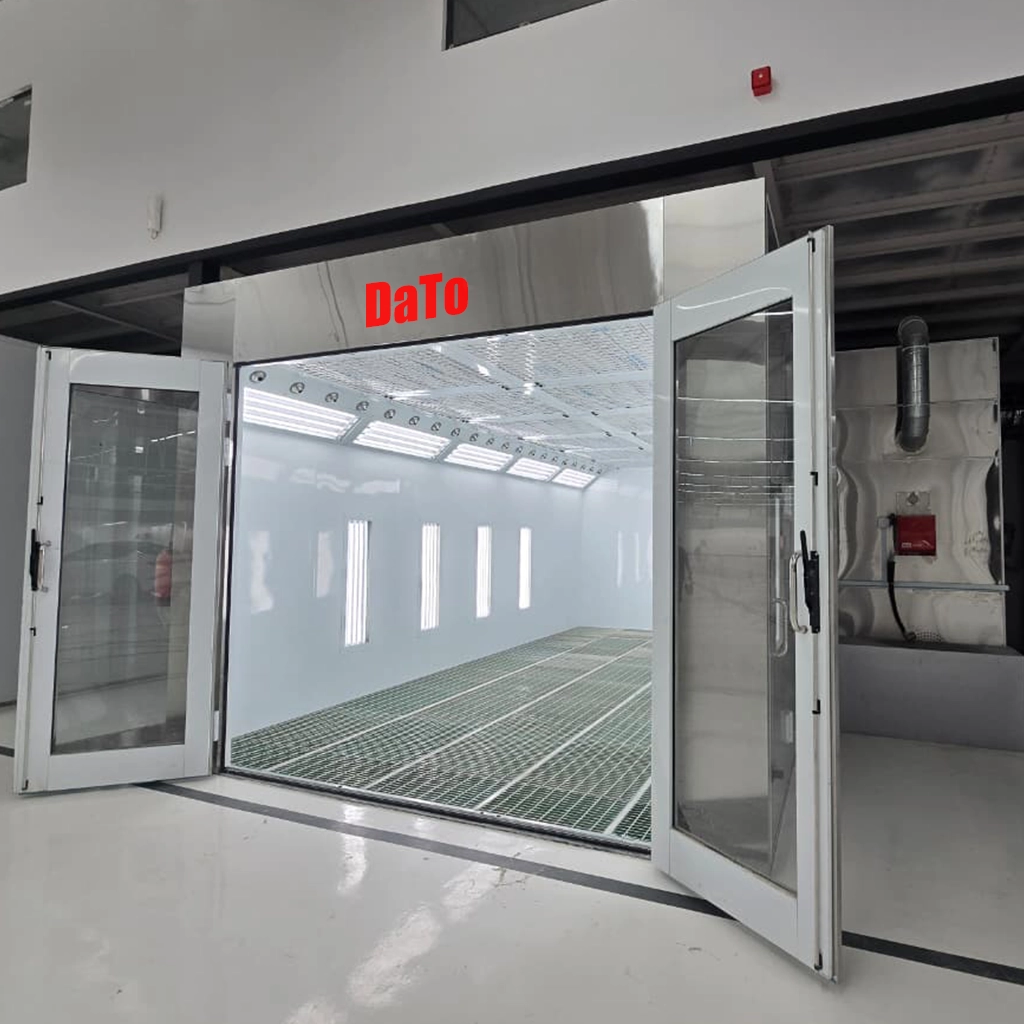

DaTo PBBSF123 Water Based Paint Booth - Image 2

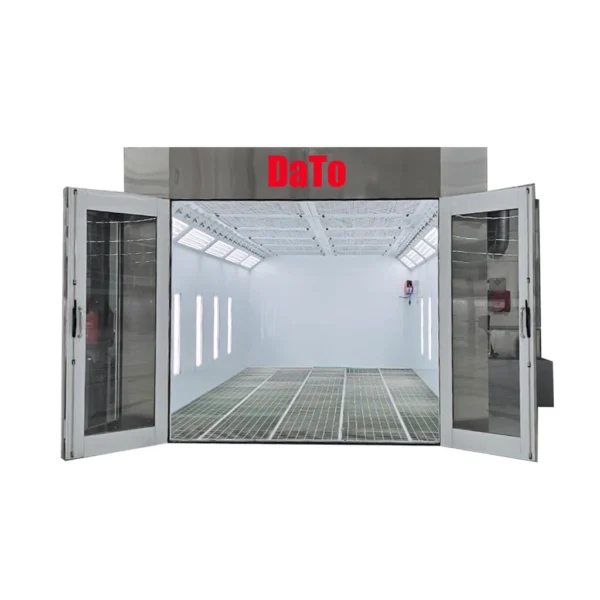

DaTo PBBSF123 Water Based Paint Booth

The PBBSF123 Water Based Paint Booth is a high-performance automotive spray booth designed for professional car body shops and service centers. Equipped with powerful 11kW inlet and exhaust blowers, advanced hot air acceleration drying system, and stainless steel heat exchanger with Riello RG5S burner, it ensures superior paint finishes, efficient airflow, and faster drying of water-based automotive paints. Its durable rock wool insulated panels, high-efficiency filtration, and intelligent control system make it a reliable solution for modern automotive refinishing workshops.

Professional Water Based Automotive Paint Booth

Product Description

The PBBSF123 Water Based Paint Booth is engineered to provide consistent airflow, precise temperature control, and fast drying performance for modern automotive refinishing applications. Designed specifically for water-based paint systems, this booth ensures smooth paint finishes, improved productivity, and reduced drying time.

Built using 50mm rock wool insulated sandwich panels, the booth provides excellent heat insulation, sound reduction, and durability. The heavy-duty steel basement structure with full grids and ramp allows convenient vehicle entry and stable working conditions for technicians.

The booth integrates high-performance 11kW inlet and exhaust blower units that maintain balanced airflow, ensuring a clean and dust-free painting environment. The roof-mounted hot air accelerators enhance drying efficiency, making it ideal for high-volume body shops.

A stainless steel heat exchanger combined with a Riello RG5S burner ensures efficient heat generation for baking cycles, while advanced filtration systems maintain superior air purity inside the booth.

With automatic airflow control, safety protections, and constant temperature spraying, the PBBSF123 is the perfect solution for professional automotive repair workshops, car dealerships, and collision repair centers.

Technical Specifications

Specification	Details
Model	PBBSF123
Booth Type	Water Based Automotive Paint Booth
Wall Panel	50mm Rock Wool Sandwich Panels
Basement	Steel Structure with Full Grids & Ramp
Door System	3 Front Doors + Emergency Door
Blower Units	11kW Inlet Blower + 11kW Exhaust Blower
Drying System	Hot Air Acceleration System
Accelerators	6 Roof Mounted Units
Heat Exchanger	Stainless Steel
Burner	Riello RG5S
Exhaust Duct	4m Straight Duct with Bends
Chimney	5m Straight Chimney
Roof Filters	6 Units
Floor Filters	5 Units
Lighting	Upper Lights: 10 Sets (4×40W)
Side Lights	8 Sets (4×40W)
Control System	Overload, Overheat, Phase Protection
Operation	Automatic Spray/Bake Transition

Parameter	Specifications
External Size (m)	7.0 × 5.6 × 3.6
Internal Size (m)	6.9 × 3.9 × 2.7
Door Width (m)	3.0
Door Height (m)	2.66
Air Flow (m³/h)	30000
Inside On-load Air Speed (m/s)	0.3 – 0.5
Power (kW)	26
