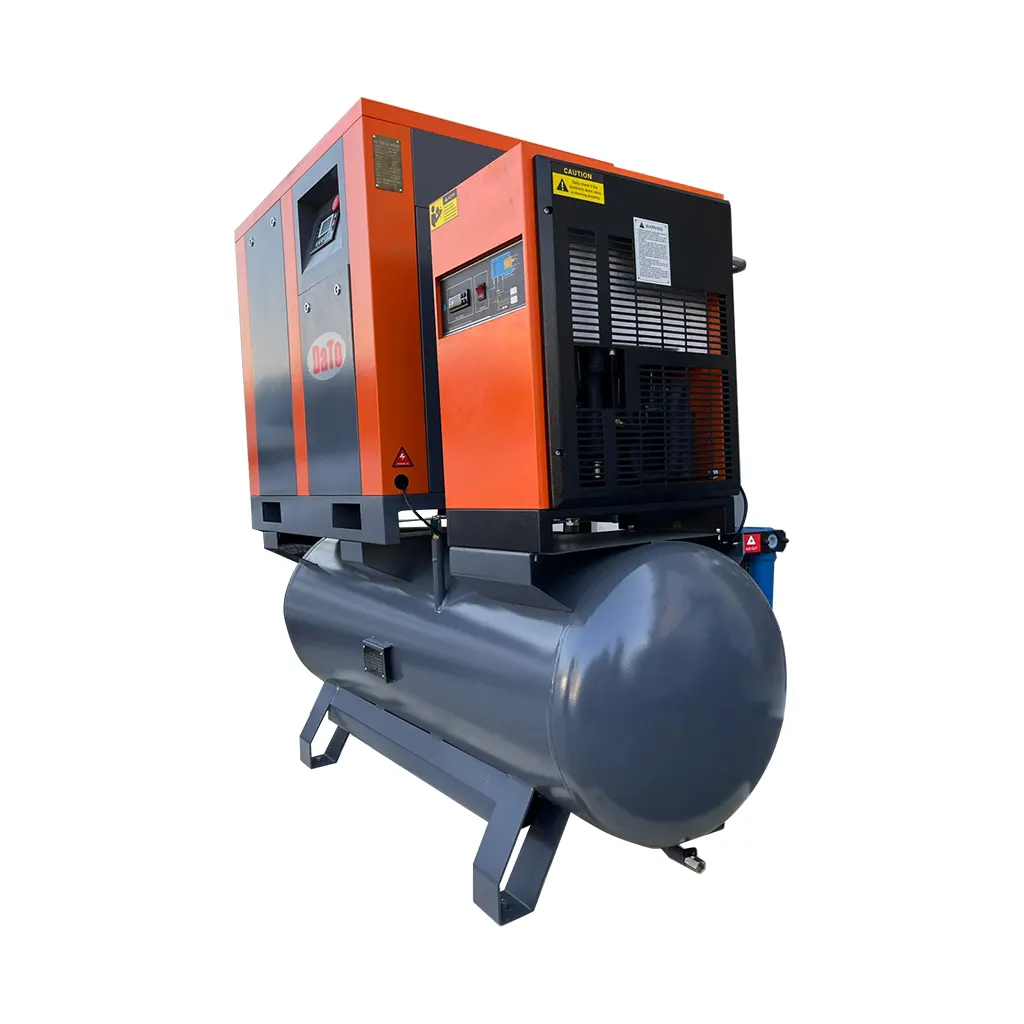

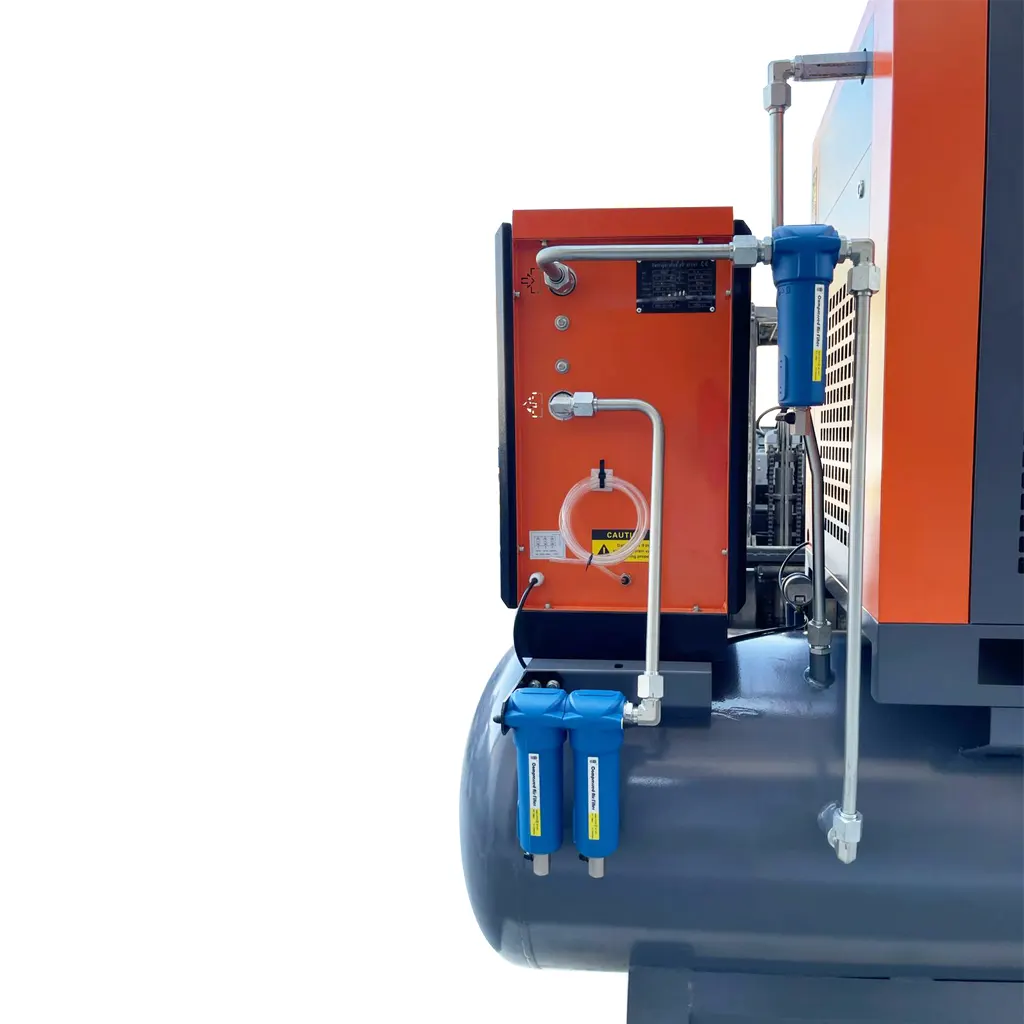

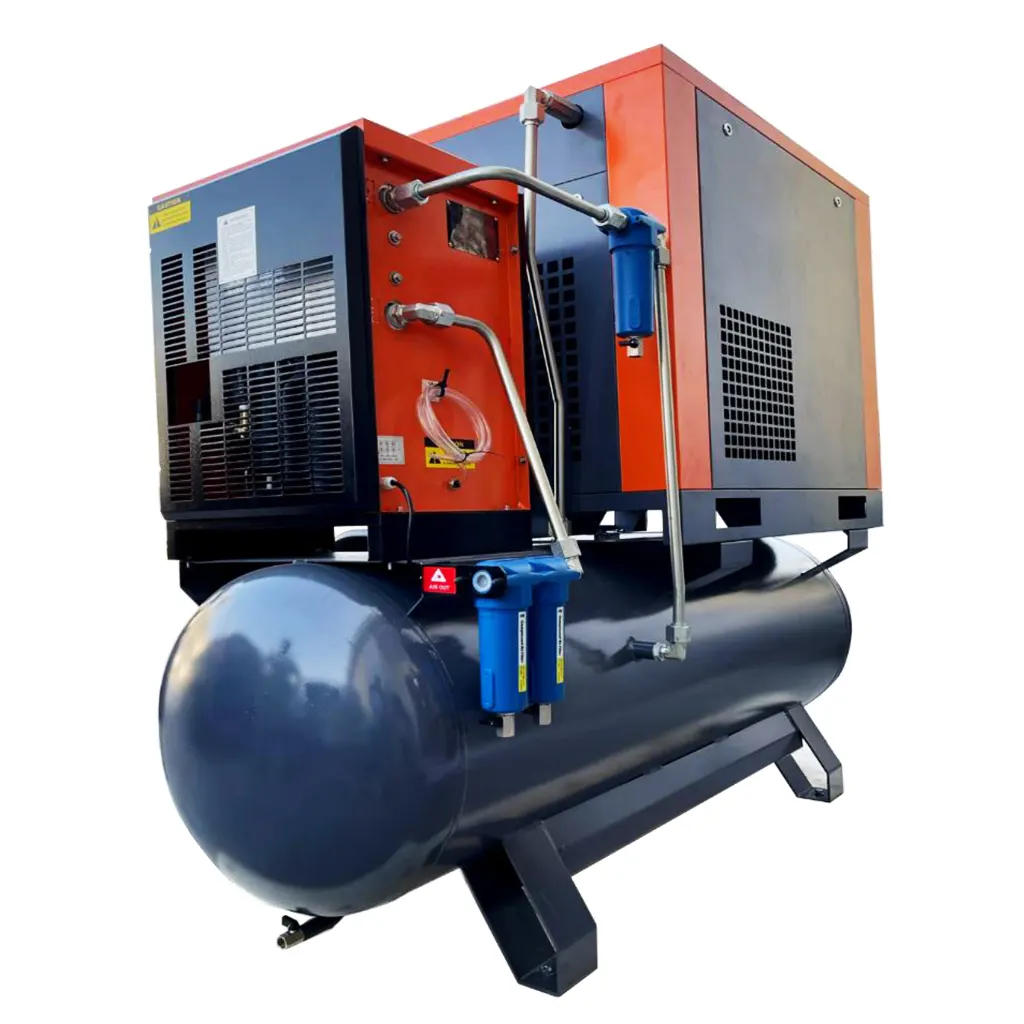

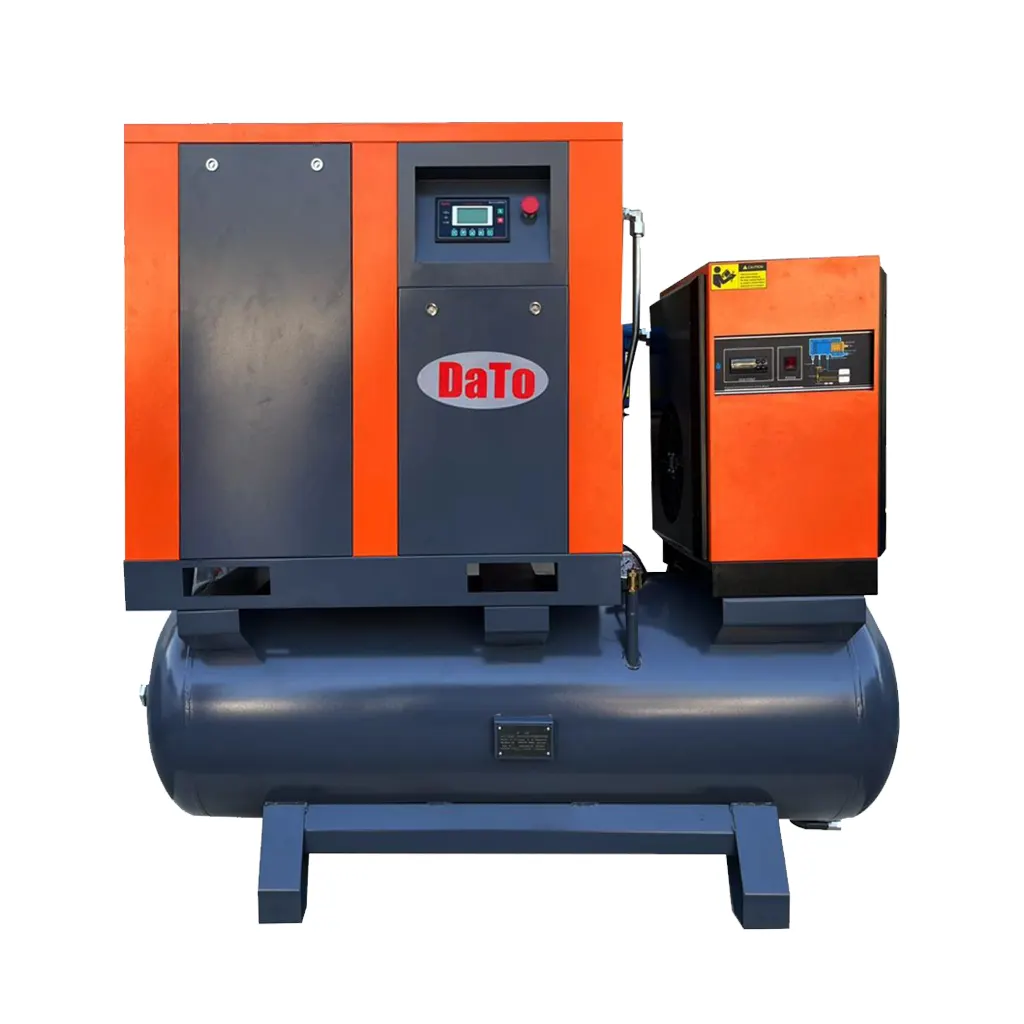

DaTo CSST10I15/CSST10I10- Screw Air Compressor
High efficiency oil-injected screw air compressor with low noise, minimal vibration, and reliable continuous operation. Ideal for automotive and industrial workshops in UAE & Middle east
Industrial Screw Air Compressor – High Efficiency, Low Noise, Reliable Performance
Product Overview
Upgrade your workshop performance with our Industrial Screw Air Compressor, engineered for continuous operation, maximum efficiency, and long-term reliability. Designed for automotive workshops, tire centers, body shops, and industrial applications across the UAE and the Middle East, this compressor delivers a powerful, stable air supply with minimal vibration and noise.
Built with advanced oil-injected screw technology, the system ensures smooth compression while reducing wear and extending service life.
Key Features
✔ Reliable Continuous Operation – Designed for long working hours without performance drop
✔ Few Wearing Parts – Lower maintenance cost compared to piston compressors
✔ Low Vibration & Low Noise – Ideal for automotive workshops and indoor installations
✔ High Energy Efficiency – Optimized compression process reduces power consumption
✔ Automatic Oil Injection System – Ensures cooling, sealing, and lubrication during compression
✔ Extended Bearing Life – Pressure-difference oil injection protects internal components
| Parameter | 10HP / 7.5KW | 15HP / 11KW |
|---|---|---|
| Model | CSST10i10 | CSST10i10 |
| Power | 10HP / 7.5KW | 15HP / 11KW |
| FAD (m³/min) | 1.1 m³/min | 1.6 m³/min |
| Rated Pressure | 10 bar | 10 bar |
| Cooling | Air-cooling | Air-cooling |
| Lubricant | 18L | 12L |
| Ambient Temperature | -5 ~ +45°C | -5 ~ +45°C |
| Tank Capacity | 500L | 500L |
| Noise Level | ≤68 dB(A) | ≤68 dB(A) |
| Motor Speed | 3000 rpm | 3000 rpm |
| Discharge Temperature | 85°C | 85°C |
| Electricity | 380V / 3Ph / 50Hz | 380V / 3Ph / 50Hz |
| Protection Grade / Insulation Level | IP55 | IP55 |
| Air Outlet Pipe Diameter | RP 3/4″ | RP 3/4″ |
| Oil Content in Air | <0.3 ppm | <0.3 ppm |
| Dimension (Machine) | 1931×900×1660 mm | 1931×900×1660 mm |
| Packing Dimension | 2030×1000×1780 mm | 2030×1000×1780 mm |
| Weight | 350 kg | 466 kg |
| Precision Line Filter | 3 pcs CTA | 3 pcs CTA |
Applications
-
Automotive garages
-
Tire service centers
-
Heavy vehicle workshops
-
Car detailing centers
-
Industrial production units
-
Body & paint shops
